| Brand Name : | Ruiyuan |
| Model Number : | FIW |
| Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 10Ton/week |
| Delivery Time : | 2-15 days |

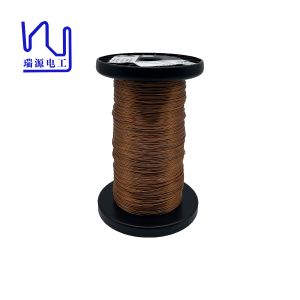

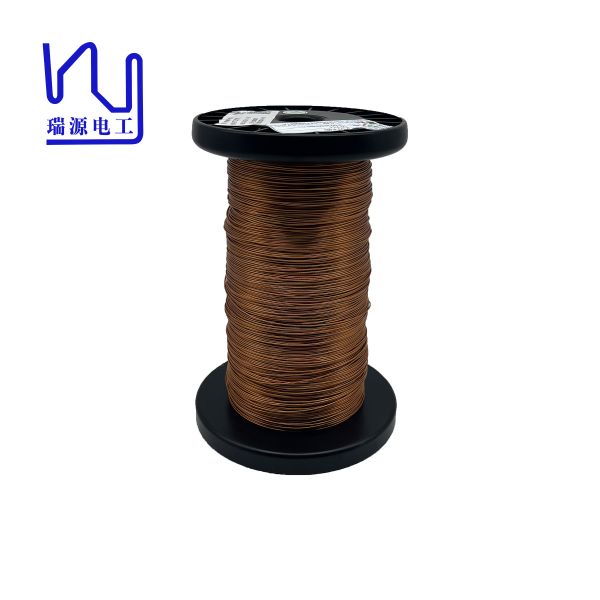

Custom Solderable FIW6 Wire 22 SWG Enameled Copper Fully Insulated Wire
In high-voltage equipment such as motors and generators, the use of FIW Full Insulated Zero Defect enameled copper wire can not only improve the efficiency and stability of the equipment, but also significantly reduce the failure rate and maintenance costs.
| Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
|
