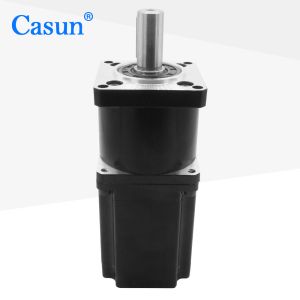

NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm Body Ratio 10:1 For Smart Device
By increasing the transmission ratio of the gear system, the high-speed low torque of the motor is converted into low-speed high torque output.
Compared to other types of reducers, planetary reducers have higher efficiency.
Features:

| Step Angel | 1.8 ° |
| Fram Size | 57mm |
| Number of Phase | 2 Phase |
| Rated Current | 2.8Amp |
| Holding Torque | 2000 mN.m |
| Resistance | 1.2 0hm |
| Inductance | 3.6 mH |
| Rotor Inertia | 460g-cm² |
| Motor weight | 1.3kg |
| Gear Reduction Ratio | 10:1 |
| Connection | Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 34 mm 40 mm 48 mm 60 mm | 27.2 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 35 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 42.7 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
