    JC-400/1+6 Compact Tubular Stranding Machine Closer For Insulation Wire

    Greater Effectiveness JC-400/1+6 Tubular Closer Machine For Insulation Wire

    1. Application:

    • This machine is mainly used for the stranding of 7-core steel wire. The appearance of the machine is designed by professionals, breaking the conventional production process, with atmospheric appearance, stable high-speed operation and low noise.
    • After many models and multiple production, combined with the actual test results of the client, based on the accumulation of many experiences, each part is optimized. The details are described as follows.

    2. Main Parameter:

    Max Single wire diameterØ1.0-5.0
    Max strand diameterØ15mm
    Through line hole diameterØ 20mm(internal polishing of alloy nozzle)
    Center wire Max through wire hole diameterØ 16mm (internal polishing of alloy nozzle)
    Strand pitch range

    The first gear: 35.33mm ~ 268.55mm

    The Second gear;30.28mm-230.19mm

    TheThird gear;48.05mm-365.23mm

    Cage max rotation speed500r/min(50Hz)
    capstan line speed range17.13~130.18m/min
    capstan wheel diameterØ 1000+ Ø 1000mm
    Bobbin size in cageØ 400 (implemented by the demander's standard)
    Take-up bobbin sizeØ 630 ~ Ø 1400mm (implemented by the demander's standard)
    Main motor power55KW(AC)

    3. Main Components:


    630 pay-off frame1 set
    6 bobbins strand cage1 set
    hydraulic parallel die holder1 set (manual hydraulic, numerical display pressure)
    Straightener1 set
    Ø 1000+ Ø 1000 double capstan device1 set (insert material: GCr15SiMn)
    pneumatic stop-back device of capstan wheel`1 set (Pressure three groove)
    Ø 1400 top tip type take-up and traverse frame1 set
    Electrical control system1 set
    Safety protecting system1 set
    Anchor bolt1 set

    4. Main Brand:

    Power supplyThree phase five wire system 380V (± 10%), 50Hz.
    Total power5kVA
    Big bearing of main cageChina "Wafangdian Guangyang"
    Other bearingsChina "Ha, WA, Lo"( HRB.WZS.LYC )
    brand of low voltage electrical appliancesChina (CHNT)
    Brand of main motorChina "Jinsheng, Qufu, Shandong"
    brand of main motor driverChina “Inovance”
    Brand of take-up main motorChina "Jinsheng, Qufu, Shandong"
    Brand of controller of take-up motorInovance (variable frequency speed controller)
    Brand of Traverse line motorDELTA servo motor
    Brand of controller of Traverse line mtorDELTA servo drive controller

    5. Main electrical system feature:

    • the electric power cabinet and control cabinet are separately set and installed.
    • install the jog switch for the convenience of equipment operation.
    • the operation panel is set with "efficiency meter", i.e. equipment operation time.
    • one key start of equipment, that is, the host and traction are synchronized, and the receiving line is delayed compared with the start and stop of the host; the receiving line starts first than the host, and stops after the host, and the start and stop delay time can be adjusted.
    • after the power supply of the equipment is turned on, the lubrication system will enter the working state, reducing the probability of human operation error.
    • the coil voltage in the control circuit is AC220V.
    • all wires shall be protected from breaking wires, and tension regulators shall be provided with safety protection to avoid damage of broken wires.

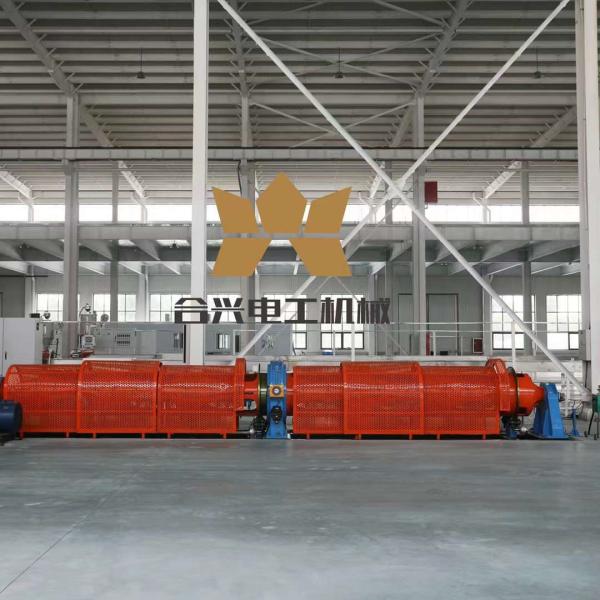

    Quality JC-400/1+6 Compact Tubular Stranding Machine Closer For Insulation Wire for sale
