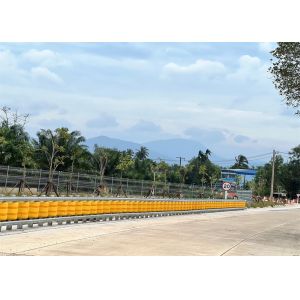

Traffic Plastic Pliable Safety Roller Barrier Highway Safety
Guardrail
Taicheng rotary anti-collision guardrail is an innovative highway
safety equipment that combines traditional guardrails with new
impact-resistant energy-absorbing rollers to achieve a "one-column
and four-rail protection method". The rotating anti-collision
guardrail made of EVA material not only provides efficient
protection, but also has the advantages of environmental protection
and durability, becoming an important breakthrough in the field of
highway safety.
Main feature:
Combining tradition and innovation: Taicheng rotary anti-collision
guardrail combines the structure of traditional guardrails with new
impact-resistant energy-absorbing rollers, giving full play to the
advantages of both and providing a new solution for highway safety.
"One pillar and four rails" protection method: The design of one
pillar and four railings is used to cover a wider area, effectively
preventing vehicles from running off the road and improving traffic
safety.
Made of EVA material: EVA material has good energy-absorbing
performance and durability, which can effectively reduce the damage
to the vehicle and passengers during a collision. It also has a
long service life, reducing replacement and maintenance costs.
Environmental protection and sustainability: EVA material is an
environmentally friendly material that is harmless to the
environment and conforms to the concept of sustainable development.
It reflects Taicheng's sense of responsibility for highway safety
and environmental protection.
Product Parameters
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 |
| M18*80 | Q235 |
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72
|
Advantage:
Providing all-round protection: Taicheng rotating anti-collision
guardrails are designed to cover a wider range, which can
effectively prevent vehicles from colliding and running off the
road, providing drivers and passengers with all-round safety
protection.
Efficient energy absorption: Guardrails made of EVA have excellent
energy absorption capabilities, which can effectively slow down the
impact of a collision and reduce damage to vehicles and passengers.
Durable and environmentally friendly: EVA material has a long
service life and excellent environmental protection properties. It
can not only meet the needs of long-term use, but also protect the
environment, achieving the dual goals of safety and sustainable
development.
