GCE HV BMS Configuration:
One complete set of HV 75S240V 50A BMS includes:
Master BMS, Model#: RBMS08-D75S-50A, and its wire accessories, include 6p temperature sensing wires
and 16p voltage sensing wires.
There are two different models for integrated BMS, one is a
standalone model while the other one is parallel with its cost
slightly higher than the standalone model.
GCE HV Integrated Master BMS and Accessories:

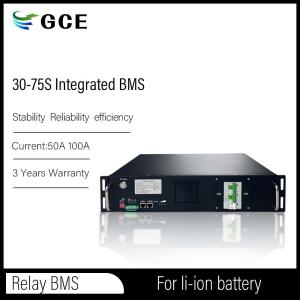

30-75S Integrated BMS
Voltage range:96V-240V
Current:50A/100A
Communication:CAN & RS485
Design: Master & slave all in one.
Temperature acquisition wire
Standard length is 600mm,900mm,1200mm
There are 3 temperature sensing probes per 15S wires. In total,
there are 12 probes in 60S and 15 probes in 75S.
Voltage acquisition wire
Standard length is 600mm,900mm,1200mm
GCE integrated BMS Characteristics:
※ Perfect self-checking and running status checking function, with
HMI display screen, system running information is clear at a
glance.
※ Complete and reliable system control and protection strategies,
comprehensively guarantee battery safety and escort to extend the
life of battery packs.
※ Modular design, configurable and expandable---multiple energy
storage units can be flexibly combined and expanded into a larger
energy storage system.
| ※ Abundant communication interfaces---multiple RS485, CAN,
Ethernet, dry contact input and output interfaces, supporting
communication with most PCS and monitoring servers on the market.
※ The communication interface protocol is flexible---the factory
comes with the company's communication protocol, and it can also be
adapted to the PCS of different manufacturers according to customer
needs.
※ The built-in large-capacity memory chip can store a large amount
of key operating data.
※ Automatic circulation control and automatic parallel/offline
control can easily realize the parallel connection of battery
packs. |
GCE integrated BMS Technical parameters:
| Item | Specifications and parameters |
| System operating voltage range | 120 - 370 VDC |
| Startup mode | DC start |
| balance | Equilibrium type | Passive resistance equalization |
| Balanced current | 100mA ± 10mA (when cell at 3.50V) |
| Sampling accuracy | ± 2℃ |
| Voltage sampling | Sampling accuracy | single-cell ±20mV |
| Communication mode | Can: 1 channel (communication with PCs / UPS) |
| RS485: 1 channel (communication with upper computer / PCS / UPS) |
| Display mode | 6-digit LED indicator, including |
| 1-bit fault indication, 1-bit operation indication, 4-bit SOC power
indication |
| HMI display: optional 3.5 inch |
| Rated current | 50A/100A |
| (be selected according to customer needs) |
| Short circuit protection | Support 7.5KA 20ms |
| Maximum overload capacity | 50A system transient: 70A/10S |
| 100A system transient: 150A/10S |
| Alarm level | one Level |
| Protection level | two levels |
| Level 1 cut-off charge/discharge |
| Level 2 micro cut-off switch, system power down |
| Power consumption | ≤10W |
| Weight | 4.5kg |
| Withstand voltage rating | 1800VDC 1mA 1min |
| Safety certification | Comply with CE certification standards |
| Operating temperature | －20～60℃ |
| Operating humidity range | <90 RH(40℃±2℃) |
