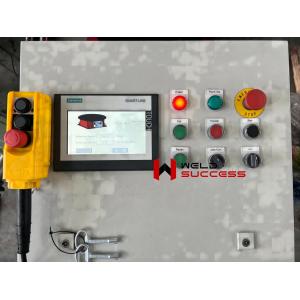

Horizontal 10T Welding Positioner Turntable With Hand Control Box

Horizontal turning table, also known as a rotary table or indexing table, is a mechanical device used in various industries for rotating workpieces horizontally. It is typically mounted on a machine tool, such as a milling machine or a lathe, and provides angular positioning and rotational movement to the workpiece. Here are some key features and applications of a horizontal turning table:

1. Angular Positioning: The horizontal turning table allows precise angular positioning of the workpiece. It can be adjusted to specific angles, enabling the machining or processing of the workpiece at different positions and orientations.

2. Rotation Capability: The table can rotate the workpiece horizontally, providing continuous or incremental rotation. This rotation capability allows for operations such as milling, drilling, grinding, and inspection of the workpiece from various angles.

3. Indexing Function: The horizontal turning table often incorporates an indexing mechanism, which enables precise division of the rotation into equal intervals or specific angular increments. This feature is useful for tasks that require accurate positioning or machining at specific angles.

4. Workpiece Clamping: The table is designed with mechanisms to securely clamp and hold the workpiece during rotation. This ensures stability and minimizes vibration or movement that could affect the machining process.

5. Compatibility: Horizontal turning tables are versatile and can be used with different types of machine tools, such as milling machines, lathes, or machining centers. They can accommodate a wide range of workpiece sizes and shapes.

6. Automation Compatibility: Many modern horizontal turning tables are equipped with automation features, such as motorized rotation, programmable control, and compatibility with computer numerical control (CNC) systems. This allows for automated and precise positioning and rotation of the workpiece.

7. Applications: Horizontal turning tables find applications in various industries, including manufacturing, machining, metalworking, and fabrication. They are commonly used for operations such as milling keyways, cutting gears, machining curved surfaces, drilling holes at specific angles, and performing multi-sided machining.

Mainly products :
1. Conventional welding rotator --- Capacity from 2T to 1000T. (Tank turning rolls)
2. Self aligning welding rotator --- Capacity from 5T to 200T. (Welding roller)
3. Scissor type welding rotator --- 2T / 5T height adjustment. (Pipe support roller)
4. Welding positioner --- Capacity from 50kg to 50T.
5. Column Boom --- Model from 1x1 to 8x8 all available. (Welding manipulator)
