Home >

4/8 Channel mobile dvr kits

Name: 48 Channel mobile dvr kits
Brand: Vanwin Tracking
Price: 1 USD

Ask Lasest Price
Brand Name :	Vanwin Tracking
Model Number :	VW9204
Certification :	CE/FCC/RoHS
Price :	negotiated
Payment Terms :	T/T or western Union or Paypal
Supply Ability :	5,000pcs per month
Delivery Time :	2-3 days for samples,15-30 days for large orders

Add to Cart

Product Details
Company Profile

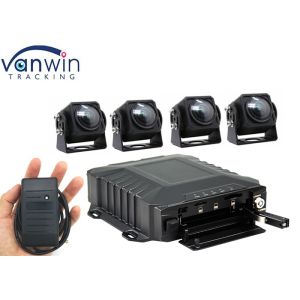

4/8 Channel mobile dvr kits

3g/4g Wifi Hdd Tracking 4/8 Channel mobile dvr kits with RFID For Taxi Truck Car Bus

4 Channel Mobile Mdvr 3g/4g Wifi Hotspot 1tb Hdd Tracking Taxi Truck Car Bus Dvr Monitor Sd Card Camera Kit Mdvr Bus 8 Channel series is a high-performance and highly scalable product specially developed for in-vehicle video surveillance and remote video surveillance. It adopts the bootstrap structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies in the front line of IT. Applicable to public security police, financial escort, long-distance passenger transportation, road patrol and other vehicles traveling monitoring field.

Product Advantages * interface for stable and reliable operation in complex environments * video encoding is H.265, H.264 optional * supports 4G WIFI and GPS function module * Supports 2.5-inch optional SSD/HDD hard drive * supports one SD card * rich peripheral interface * supports external UPS battery life * High Expandabilityvideo encoding is H.265, H.264 optional

Datasheet

Item		VW9204	VW9208
Audio and Video Inputs	video input	AHD:4ch 1080P/25fps IPC:Scalable 1-4ch	AHD:4/8ch 1080P/25fps IPC:Scalable 1-4ch
	audio input	4ch audio input
Audio and Video outputs	video output	Default 1-way CVBS output (VGA output optional)
	speech output	1ch audio output
Audio and video parameter coding	video coding	H.264 Main Profile/H.265
	Resolution	1080P/720P/D1 optional
	audio coding	Default G.726,G.711A optional
storage space	HDD	1 2.5-inch optional: SSD/HDD hard disk
	SD	Support 1 SD card
wireless network	4G	Supports 1 SIM card, optional: all major communication modules in the world
	WIFI	2.4/5.8G optional
locate mode	BD/GPS	Support for mixed positioning, speed detection, time synchronization
interface	USB	USB2.0 interface, support export data, external engineering treasure
	serial port	Support 2 RS232, 1 RS485, can be connected with external sensor
	I/O	4 level inputs, 2 analog inputs, 2 alarm outputs
	network interface	Support external IPC, support hybrid NVR function
	· Intercom	1 special intercom handheld mark interface
Physical Specifications	size	176.9mm(L)186.8mm(W)54mm(H)
	weight	NW:1.4kg GW:2kg(M51Hv-DGNE1-L as a standard)
work environment	operating temperature	-20〜+70℃
	operating humidity	8%〜90%(No condensation)
Other	operator schema	remote control,APP,WEB
	· Gravity sensor	Built-in G-Sensor

Product Picture

Application

FAQ

1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.

2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

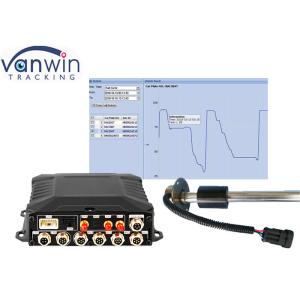

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
