    AA4C 26” Full Automatic Rim Straightening Machine Without Lathe 3 Cylinders Full Teeth AA-RSM695F

    Ask Lasest Price
    Brand Name : AA4C
    Model Number : AA-RSM695F
    Certification : CE
    Price : $850.00/Units
    Delivery Time : 10-15 days
    MOQ : 1pc
    • Product Details
    • Company Profile

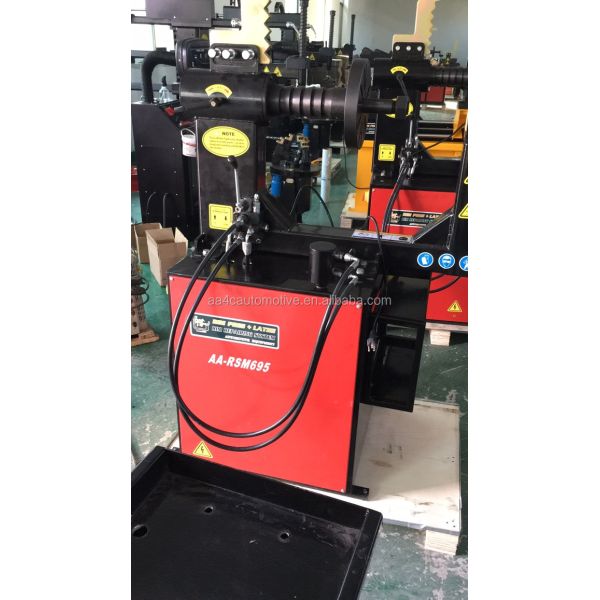

    AA4C 26” Full Automatic Rim Straightening Machine Without Lathe 3 Cylinders Full Teeth AA-RSM695F

    AA4C 26” full automatic Rim straightening machine without lathe 3 cylinders full teeth AA-RSM695F


    1.wheel straightening machine without lathe AA-RSM695
    2.Hydraulic, full automatic
    3.Without lathe
    4.Max for 30'' RIM
    5. 3 cylinders
    6. With full teeth


    Rim straightening machine AA-RSM695F
    Rim straightener
    Alloy rim straigthening machine.
    Steel rim straightening machine
    This unique machine is used to correct and straighten all kinds
    of defected steel and alloy rims ranging from 10'' to 26'.
    DIMENSIONS
    Height 1250 mm Width 1110 mm Length 610 mm

    Packing size: 1300*800*1400mm
    Weight 340 Kg /360kg

    MOTOR SPECIFICATIONS
    Mechanic 0,55 kw, 1400 rpm, 0,75 hp,
    3 phase - single phase, 220V - 380 V
    Hydraulic 0,75 kw 1400 rpm, 1 hp,
    3 Phase - single phase, 220V - 380 V
    Sound 35 db
    HYDRAULIC PISTON POWER
    Total pressure = πr2 x 160 (Working pressure bar)
    Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
    Total pressure = 31,156 x 160 = 4 984,96kg
    Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
    As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.
    STANDARD ACCESSORIES LIST

    Standard Accessories of AA-RSM585.

    No.

    item

    Specification

    Qty

    1

    Connecting flanges for different sizes of rims

    Rim to center washer

    10



    Φ54

    1



    Φ56.5

    1



    Φ57

    1



    Φ58

    1



    Φ59.5

    1



    Φ60.1

    1



    Φ63.3

    1



    Φ64

    1



    Φ65

    1



    Φ66.6

    1



    Φ72

    1



    Φ72.5

    1

    2

    Gauge


    1

    3

    Pole for positioning the deformed part


    1

    4

    Allen head wrenches

    5#6#8#10#12#

    1

    5

    Angular supports


    1

    6

    Square supports


    2

    7

    Gradual supports


    2

    8

    Cutter type supports


    4

    9

    Supports miles


    4

    10

    Lever


    1

    11

    Lathe cutter


    1

    12

    Front supporting seat


    1

    13

    , ;, ;Rear supporting seat


    1

    14

    Professional wrench

    19#

    1

    15

    Centering ring


    1

    16

    Cross sliding part(including cutter holder)


    1 set

    17

    Flange(including 5 fixing bolt)


    1 set










    .
