Multifunctional High Speed Filling Machine Packaging Machine

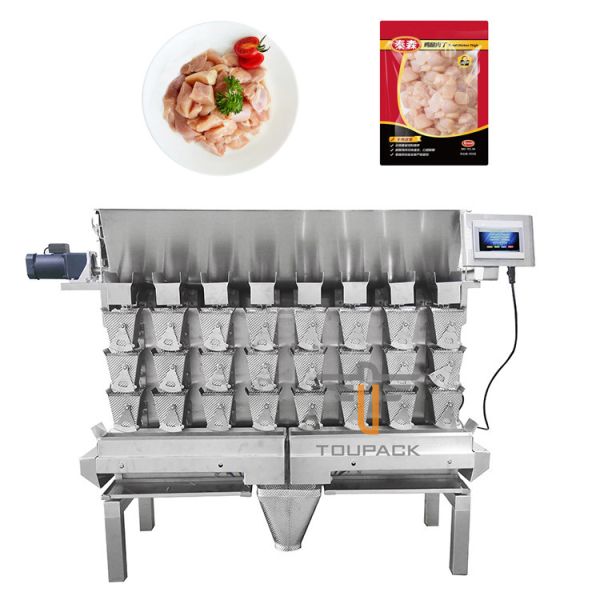

Multihead Weigher 8 Head Weigher For Pickles Diced Chicken
Application
It’s suitable for weighing mustard, pickles, small fish and other
irregular sticky materials with poor flowability.
Features
1.Special load cell with high precision and high standard.
2.Intelligent fault alarm, convenience for maintenance.
3.High speed staggered discharging function, effectively prevent
blocking materials.
4.Module electric board, and with intelligent multiple sampling
stable mode, make weighing higher accurate.
5.Linear arrangement with three layer hopper structure, effectively
reduce space. 2.The upper hopper has a stirring device, which
effectively solves the sticky material feeding problem.
6.Screw feeding to replace the traditional vibrator feeding, it’s
more suitable for sticky material.
7.Belt collection makes the material collect easier, faster and
more efficient.
8.Stable actuator structure makes the hopper running more stable
and reading higher accuracy.
9.The scraper hopper can effectively solve the problem of material
sticking on the hopper.
Specifications
Model | TY-ZHZ083M10-01-12 |
Max. Weighing(one hopper) | 50-1000g |
Accuracy | x (0.5) |
Min.Scale Interval | 0.1g |
Max.Speed | 30 BPM |
Hopper Volume | 1.0L |
Control System | MCU |
HMI | 7” / 10” color touch screen |
Power Supply | AC220V / 110V ±10% 50HZ/60HZ, 2.0KW |
Packing Dimension | 1960mm(L)*780mm(W)*1640mm(H) |
Gross weight | 416kg |
Net Weight | 318kg |
Customization Solution:
According to your production line requirements, our experts will
provide you with an integrated weighing and packaging solution to
help you improve production efficiency.
