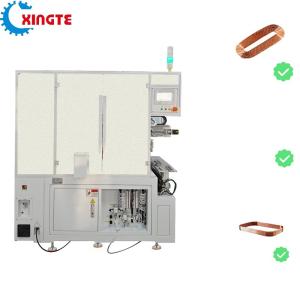

X–601LS3 Fully Automatic Special-Shaped Coils Winding
Machine,profiled air coil winding machine
Product Features
This machine suits various types of special-shaped voice coils
(square type, runway type).
The control system adopts a full English touchscreen interface,
which is easy to operate. Staff can take up the job after two days
of training.
The mechanical operation part is reasonably designed, making the
production efficiency of the equipment higher than that of
competitor equipment.
The metal materials used have been treated with special processes,
which significantly improve the wear resistance and anti-corrosion
performance of the equipment compared with ordinary equipment,
extending the service life of the equipment.
The mechanical movement part all uses imported servo motors and
high-precision ball screws.
The imported bearings ensure the product’s high efficiency and high
precision, with small deformation and improved product quality;
the whole machine adopts a safety design to prevent safety
accidents during operation.
Applications
Mobile phone speakers, loudspeakers, 151, 1206, 1609 square
speakers, runway speaker voice coil, etc
Product Parameters
| Model | XT-601LS3 |
| Wire diameter | 0.015-0.18mm |
| Coil stack height | ≤ 25mm |
| Coil outer diameter | ≤ 60mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 40-70mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 400pcs/ H |
| Power | 2Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 980(L)x500(W)x1,500(H)mm |
| Machine weight | Approx. 290kgs |
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D
experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more
than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff,
worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee
our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure
our strong R & D ability, also can guarantee our customization
capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker,
transformer production line
Our factory
Machines
Special-Shaped Coils finished product
Delivery
