    Cutting LINSING Type Round Matrix Core Concrete Diamond Segment for Core Drill Bit

    Ask Lasest Price
    Brand Name : LINSING
    Model Number : Core bit segment
    Certification : TUV
    Supply Ability : 50000 Piece/Pieces per Day Diamond core drill bit segment
    Price : $0.98/pieces 100-999 pieces
    • Product Details
    • Company Profile

    Cutting LINSING Type Round Matrix Core Concrete Diamond Segment for Core Drill Bit

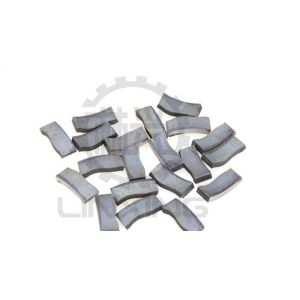

    Diamond segment for core drill bit

    The segment is a cutting tool used for core drilling applications. It is designed with industrial-grade diamond particles embedded in a metal matrix, typically consisting of a mixture of metal powders and a bonding agent. The diamond segments are strategically arranged along the circumference of the core drill bit to facilitate efficient and precise cutting of hard materials such as concrete, stone, granite, and other construction materials.

    Product Features:

    1: Superior Cutting Performance: Diamond segments offer excellent cutting efficiency and precision, allowing for smooth and fast drilling through hard materials.

    2: Long Service Life: Due to their exceptional hardness and wear resistance, diamond segments have a longer lifespan compared to traditional cutting tools.

    3: Versatility: They can be used to drill various materials, including concrete, stone, granite, asphalt, and other construction materials.

    4: Reduced Heat Generation: Diamond segments generate less heat during drilling, minimizing the risk of damage to the drilling surface and increasing the overall efficiency.

    5: Minimal Chipping and Breakage: The precise and controlled cutting action of diamond segments helps to reduce chipping and breakage of the material being drilled.

    6: Cost-Effectiveness: Although initially more expensive, the longer lifespan and higher performance of diamond 7:segments result in cost savings over time.

    8: Environmentally Friendly: Diamond segments create less dust and debris during drilling, making them environmentally friendly compared to other cutting methods.

    9: Ease of Use: Core drill bits with diamond segments are easy to use, providing a stable and reliable drilling experience for operators.

    Product Specification:

    Diameter(mm/inch)Segment Specification(mm)Adaptor
    28mm (1-1/8")16x2.5x10M10, M12, M14, 5/8"-11, 1/2-G
    32mm (1-1/4”)16x3.0x10M10, M12, M14, 5/8"-11, 1/3-G
    35mm (1-3/8”)16x3.0x10M10, M12, M14, 5/8"-11, 1/4-G
    38mm (1-1/2”)16x3.0x10M10, M12, M14, 5/8"-11, 1/5-G
    42mm (1-5/8")16x3.0x10M10, M12, M14, 5/8"-11, 1/6-G
    45mm (1-3/4”)16x3.0x10M10, M12, M14, 5/8"-11, 1/7-G
    50/51mm (2”)16x3.0x10M10, M12, M14, 5/8"-11, 1/8-G
    57mm (2-1/4”)22x3.5x10M10, M12, M14, 5/8"-11, 1/9-G
    60mm (2-3/8”)22x3.5x10M10, M12, M14, 5/8"-11, 1/10-G
    63mm (2-1/2”)22x3.5x10M10, M12, M14, 5/8"-11, 1/11-G
    70mm (2-3/4”)22x3.5x10M10, M12, M14, 5/8"-11, 1/12-G
    76mm (3”)22x3.5x10M10, M12, M14, 5/8"-11, 1/13-G
    80mm (3-1/8”)22x3.5x10M10, M12, M14, 5/8"-11, 1/14-G
    89mm (3-1/2”)22x3.5x10M10, M12, M14, 5/8"-11, 1/15-G
    102mm (4”)22x3.5x10M10, M12, M14, 5/8"-11, 1/16-G
    110mm (4-3/8”)22x3.5x10M10, M12, M14, 5/8"-11, 1/17-G
    127mm (5”)24x4.0x10M10, M12, M14, 5/8"-11, 1/18-G
    Use for Diameter(mm)
    Long(mm)
    Height(mm)
    Thickness(mm)
    Tooth number
    Short teeth
    350
    40
    12.5/15
    3.4
    24
    400
    40
    15
    3.8
    28
    500
    40
    12
    4.2
    36
    525
    40
    12
    4.2
    36
    600
    40
    12
    4.8
    42
    700
    50
    12/15
    4.8
    46
    800
    50
    12/15
    5.2
    50
    900
    50
    12/15
    6.0
    50
    Long teeth
    1000
    24
    12.5/13.5
    7.4/8
    72
    1200
    28/24
    12.5/13.5
    7.4/8
    80
    1400
    28/24
    12.5/13.5
    8.2/8.8
    92
    1600
    28/24
    13/15
    8.6/9
    108
    1800
    28/24
    13/15
    9.8/10.2
    120
    2000
    28/24
    13/15
    10.8/11.2
    132
    2200
    28/24
    13/15
    10.8/11.2
    136
    2500
    28/24
    13/15
    10.8/11.2
    136

    Special requirements of various models can be customized.
