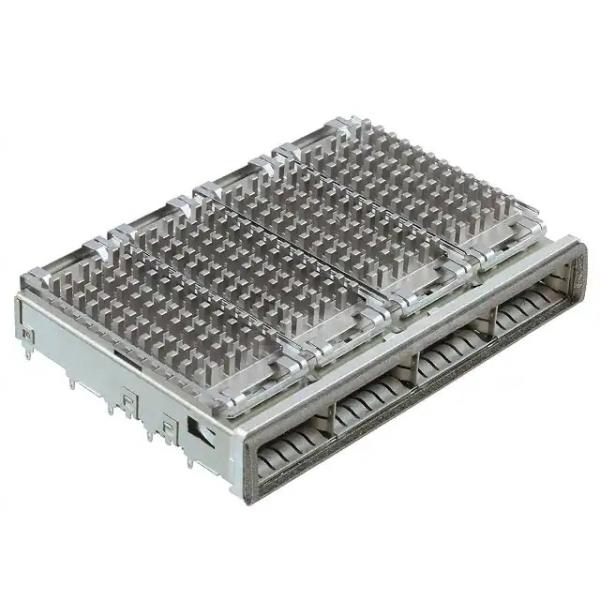

TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle

    Buy cheap TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle from wholesalers

    Buy cheap TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle from wholesalers
    • Buy cheap TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle from wholesalers
    • Buy cheap TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle from wholesalers

    TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 2174754-2
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle

    2174754-2,Cage Assembly, 1 x 4, Elastomeric Gasket, Standard, Data Rate (Max) 14 Gb/s, 4 Port, Pin

    Part Number:
    2174754-2Part Status
    Active
    Connector Style
    Cage, Ganged (1 x 4) with Heat SinkConnector Type
    QSFP
    Number of Rear EONs per Port Column
    1Mounting Type
    Through Hole, Right Angle
    Termination
    Press-FitFeatures
    EMI Shielded

    Port Matrix Configuration
    1x4 PortsNumber of Ports
    4
    Data Rate (Max)(Gb/s)
    14Connector Mounting Type
    Board Mount
    Heat Sink Style
    PinHeat Sink Height
    6.5mm[.256in]



    Operating Temperature Range
    -55 – 105°C
    Pluggable I/O Applications
    SFP+ Stacked Belly-to-Belly
    Circuit Application
    SignalEMI Containment Feature Type
    Elastomeric Gasket

    Included Lightpipe
    NoCage MaterialNickel Silver

    PCB Thickness (Recommended)
    1.45mm[.057in]
    Tail Length
    2.2mm[.086in]










































    Product Tags:

    2174754-2


    Quality TE 2174754-2 QSFP Cage Ganged (1 x 4) with Heat Sink Connector 14 Gb/s Right Angle for sale
