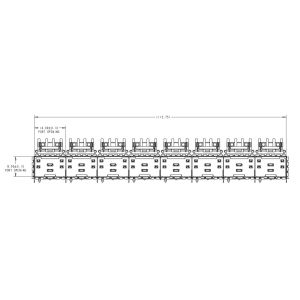

    2294408-2 TE zSFP+ Cage Ganged (1 x 8) Connector Press-Fit 32 Gb/s EMI Springs

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 2294408-2
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    2294408-2 TE zSFP+ Cage Ganged (1 x 8) Connector Press-Fit 32 Gb/s EMI Springs

    2294408-2,zSFP+, Cage Assembly, Data Rate (Max) 32 Gb/s, EMI Springs, 1 x 8, Pin, Heat Sink Height 4.2 mm [.165 in], Through Hole - Press-Fit Mount

    Part Number:
    2294408-2Part Status
    Active
    Connector Style
    Cage, Ganged (1 x 8)Connector Type
    zSFP+
    Data Rate (Max)(Gb/s)
    32Mounting Type
    Through Hole, Right Angle
    Termination
    Press-FitFeatures
    EMI Shielded

    Port Matrix Configuration
    1x8 PortsNumber of Ports
    8
    Number of Positions
    -Connector Mounting Type
    Board Mount
    Operating Temperature Range
    -40 – 85°C
    Pluggable I/O Applications
    -
    Circuit Application
    SignalEMI Containment Feature Type
    EMI Springs
    Included Lightpipe
    NOCage MaterialNickel Silver Alloy

    Heat Sink Height
    4.2mm[.165in]



    PCB Thickness (Recommended)
    2.25mm[.089in]
    Tail Length
    2.05mm[.081in]










































    Product Tags:

    2294408-2
