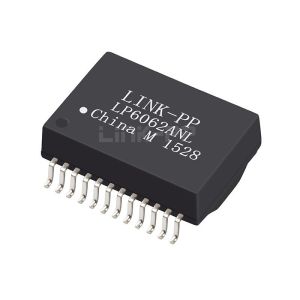

    Pulse H6062NL Compatible LINK-PP LP6062ANL 100/1000 Base-T Single Port SMT 24 PIN POE+ Lan Transformers

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LP6062ANL
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    Pulse H6062NL Compatible LINK-PP LP6062ANL 100/1000 Base-T Single Port SMT 24 PIN POE+ Lan Transformers

    Pulse H6062NL Compatible LINK-PP LP6062ANL 100/1000 Base-T POE+ Lan Transformers For Surgical Equipment (POE+, SMT, 24 PIN, Single Port )


    The LP6062ANL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


    LINK-PP Part Number:
    LP6062ANLPulse Part NumberH6062NL
    Part Status
    ActiveTransformer Type
    Lan Transformer
    Construction
    OPEN FRAME
    Application-Lan
    Ethernet(PoE+)
    Number of Ports
    Single PortSpeed
    10/100/1000 Base-T
    Package
    Tape & ReelCores per Port
    8
    AutomDX
    YesComment

    SAME AS NL VERSION

    PIN number
    24
    Mounting Type

    Surface Mount

    Package Height (Inches/mm)
    0.260/6.60Package Length (Inches/mm)0.697/17.70
    Package Width (Inches/mm)
    0.630/16.00Temperature
    -40℃ TO +85℃
    Turns Ratio RX/TX
    1CT:1CT
    Configuration RX/TX
    T,C,S
