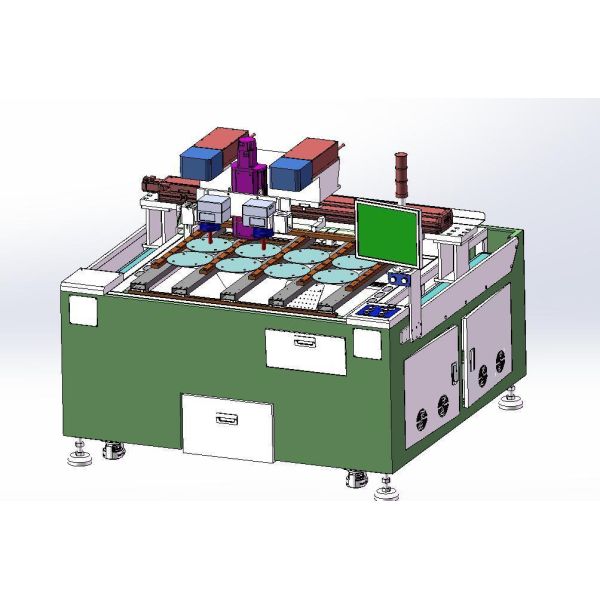

This equipment is mainly composed of frame sheet metal structure,
glass placement card position, laser system, manual unloading
platform, electric control system and so on.Equipment main technical parameter list:| Project | The main parameters | Remark |
| Laser system | Laser Type: Solid State Laser | Laser: 2 sets |
| Model: DY LASER-130NS |
| Power: 130W |
| Wavelength: 1064nm IR |
| Spot Mode: M²≤1.3 |
| Pulse Width: 2-9ns |
| Repeat frequency: 10-200KHz |
| Average power stability: <1%RMS |
| Output Polarization: Horizontal Polarization | |
| Polarization rate: <100:1 |
| Far field divergence angle: <1mrad |
| Ellipticity: ≥85% |
| Beam pointing stability: <50urad |
| Exit spot size: 2mm |
Digital Drilling Galvanometer Parameters
| 1.Beam Pointing Steady Drift: <20urad/ºC | Digital galvanometer: 2 sets |
| 2.Incident spot: <9mm |
| Expanded beam spot: <11mm |
Scan depth: ±10mm @F163 field lens
±25mm@ F250 field lens
±35mm@F290 field lens |
| Maximum positioning processing range: D≤95mm |
| Linearity: >99.9% |
| Scan angle: ±0.35rad |
| X/Y axis tracking time: 0.15ms |
| Marking speed: <6000mm/s |
| Z-axis repeat positioning accuracy: <1um |
| X/Y axis drifts for a long time (after 30 minutes of warm-up):<0.1rad |
| Z-axis drift for a long time (after 30 minutes of warm-up):<5um |
| Power supply: ±15V/10A |
| Lens reflection wavelength: 1064mm |
Software system | Control function:
1. Storage of laser energy, frequency and pulse width adjustment
2. Store 100 processing parameters | Software system: 2 sets |
3. Computer: Standard 4U industrial chassis with 300W ATX
industrial power supply, i5CPU-3470,
Memory 4G DDR3, hard disk 500G 1T serial hard disk. |
Rack structure | Material: Fangtong sheet metal structure | |
| Appearance size:L2300mm*W2700mm*H1900mm(actual design shall prevail) |
| XY working stroke:350mm*700mm(single station) |
| Table height dimension:750mm |
| Z axis stroke: 80mm |
XYZ axis moving speed: High speed ≥10mm/s Low speed: 2mm/s
Manual fine adjustment: 0.25mm/260 degrees |
| Processing speed:ø=7mm,ð=3mm/2S |
| Processing depth: H≤50mm |
| XYZ axis movement accuracy: ±0.2mm |
| XYZ axis repeatability: ±0.2mm |
| Laser Drilling Accuracy: ±0.1mm |
| Laser cutting angle: R≥2mm |
| Platform surface: special for vacuum suction cutting of high-clean
aluminum plate |
| Motion control card brand and model: Googol |
| Guide rail screw brand model: Taiwan Shangyin V15 type P-level
WIWIN double guide rail ball screw |
| Ventilation: It comes with a vacuum fan, but the customer needs to
cooperate to discharge the exhaust pipe to the outside. |
Electrical parts | Operation keyboard function:
1. Turn on the power switch
2. Start button
3. Emergency stop switch
|
| Installation Environment | Input power: single-phase AC 220V 50-60Hz 10A | |
| Temperature and humidity:25ºC±1ºC, 60% |
| Power consumption of the whole machine: 10KW |
| Total Weight: 400KG |
| Load-bearing unit area: 0.1 ton/m² |
