    1700KG SMT placement machine for LED flexible strip 5m 10m 25m 50m 100m

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-T9
    Certification : CE,CCC,SIRA,ISO
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    1700KG SMT placement machine for LED flexible strip 5m 10m 25m 50m 100m

    LED flexible strip 5m 10m 25m 50m 100m 1700KG SMT placement machine


    Production description

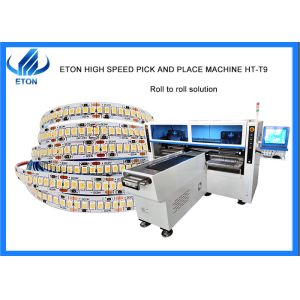

    Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.


    Features


    • Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
    • Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
    • Calibration automatically, high precision, available for for RGB.
    • Exclusive patent technology: Group to pick and group to mount.

    Machine parameter


    ModelHT-T9
    Dimension3100*2250*1650mm
    Total weight1700kg
    PCB length width250mm*any length
    PCB thickness0.5-1.5mm
    PCB clampingVacuum adsorption, cylinder splint, adjustable track width
    Mounting modeGroup picking and group placing
    Mounting precision±0.02mm
    Mounting speed20-25W CPH
    No. of feeders station68PCS
    No. of head68PCS

    Our Exhibitions

    As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

    Packages

    Step 1: Packing in film package to prevent dust and water to the machine

    Step 2: Packing in foam cotton to protect the outside of the machine

    Step 3: Packing in vacuum package to keep dry of the machine during transportation

    Step 4: Transportation by truck to specified port

    Related machine

    We can provide a whole SMT production line,led light production line:

    1.Pick and place machine

    2. Loader machine

    3. Conveyor machine

    4. Stencil printer machine

    5. Reflow oven machine

    6. Unloader machine

    7. Solder paste mixer

    8. Roll to roll led strip light assembly machine
