    Fine Sand Recovery Dewatering Machine Applied To Artificial Sand Making

    Ask Lasest Price
    Brand Name : Huaji
    Price : Negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

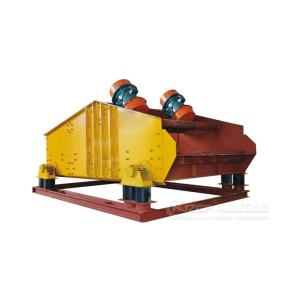

    Fine Sand Recovery Dewatering Machine Applied To Artificial Sand Making

    Fine Sand Recovery Dewatering Machine product description

    Fine sand recycling and dewatering machine is a kind of efficient fine sand recycling and dewatering equipment developed by our company after accumulating many years of manufacturing experience. It consists of motor, slurry pump, cyclone ZKR dewatering screen, cleaning tank, return box and so on. Mud water flows into the cleaning tank, through the wear-resistant pump will mud water into the high-pressure separator to the sewage and sand separation, sand through the nozzle to the dewatering screen, dewatering and sent away. Dewatering screen height can be adjusted more practical; box backwater replenishment function using float level valves, more automated; dewatering screen, screen plate and nozzle using synthetic plastics, so that its wear life is 4-6 times greater than the steel plate, and is not easy to plug the holes, can be recycled in the total amount of discharge of 80% -90% of the fine particles with full automation, low energy consumption, large treatment capacity, saving water resources, no pollution and other characteristics. It can be applied to artificial sand making, coagulation station, dock sand washing and other industries.

    Fine Sand Recovery Dewatering Machine working principle

    Mud water flows into the cleaning tank, through the wear-resistant pump will mud water into the high-pressure separator to sewage and sand separation, sand through the nozzle to the dewatering screen, dewatering and sent away.

    Fine Sand Recovery Dewatering Machine Technical Parameters

    ModelScreen area
    (㎡)
    Shaker power
    (KW)
    Feed size
    (mm)
    processing capability
    (t/h)
    HT-4532.2×2≤1020-30
    HT-804.53.0×2≤1050-80
    HT-1005.53.0×2≤1080-100
    HT-12063.0×2≤1090-120
    HT-1506.53.7×2≤10100-130
    HT-2007.53.7×2≤10100-160
    HT-2409.05.5×2≤10130-180
