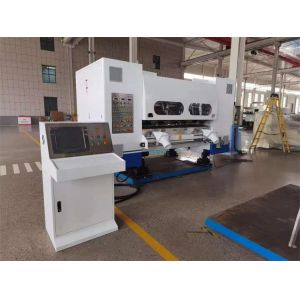

    Customized Nc Computer Thin Blade Slitter And Scorer Machine For Corrugated Line

    Ask Lasest Price
    Brand Name : LIHENG
    Supply Ability : 1000 Set/Sets per Year
    Price : $21,400.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Customized Nc Computer Thin Blade Slitter And Scorer Machine For Corrugated Line

    Product Description

    NC Slitter scorer

    Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.

    Function and characteristic:


    1.The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency. 2.Using the synchronous belt
    transmission,low noise. 3.Taiwan colorful touch screen,simple operation. 4.Adopt computer control automatic or manual grinding.
    5.The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. 6.Keep the
    synchronous speed with the production line automatically. 7.Patent type passive grinding,compact structure,can work while
    sharpening,improve work efficiency.
    Specification
    Model
    1800
    2200
    Max slitting size(mm)
    1850
    2250
    Min slitting size(mm)
    130
    Min scorer width(mm)
    0 mm
    Scorer height(mm)
    0-12
    Blade size(mm)
    200*122
    Blade/scorer
    4/6 ,5/8 ,6/10,7/12
    Machine dimension
    2830*1300*2000(mm)
    3130*1300*2000(mm)
    Power
    12kw
    15kw
    Speed
    150m/min
    Order change time
    1-5S
    Packing & Delivery
    The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.
    Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding.
    Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.
