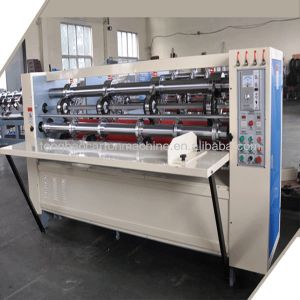

    Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V

    Ask Lasest Price
    Brand Name : TB
    Supply Ability : 20 Set/Sets per Month
    Price : $1,000.00 - $2,000.00/sets
    • Product Details
    • Company Profile

    Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V


    Paperboard Creasing Cutting Machinery/Corrugated Cardboard Slitter Scorer Machine


    Product Description

    FY Rotary Slitting and Scorer Machine

    1. Used to produce single, double and multiple layer corrugated carton.


    2. Cutting, slitting and creasing in one pass.


    3. Compact structure and easy operation.


    4. Cutting, slitting and creasing in one pass.


    5. Compact structure and easy operation.

    Parameters

    Main Features And Functions

    1.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
    2.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton Sheet.
    3.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
    4.Electric control lift-down and correct error, easy to operate, suit for different requirements.
    5.Adopt China famous brand or imported electric element, dependable performance.
    6.Adopt synchronous belt drive, low noisy and work steady.
    7.It could be adopts double machine type, easy and fast change cutting order.
    8.Max running speed for production line:150m/min
    9.with protect cover,make sure the workers safety

    Model
    2000
    2500
    3000
    3500
    Width of paper board(mm)
    2000
    2500
    3000
    3500
    Speed of paper dividing(m/S)
    2
    2
    2
    2
    Driving power(kw)
    1.1
    1.5
    2.2
    2.2
    Weight(kg)
    1000
    1400
    2000
    2500
    Size of conflguration
    2400*1100*1170
    2900*1100*1170
    3400*1100*1170
    3400*1100*1170
    Corporate Profile

    Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.
