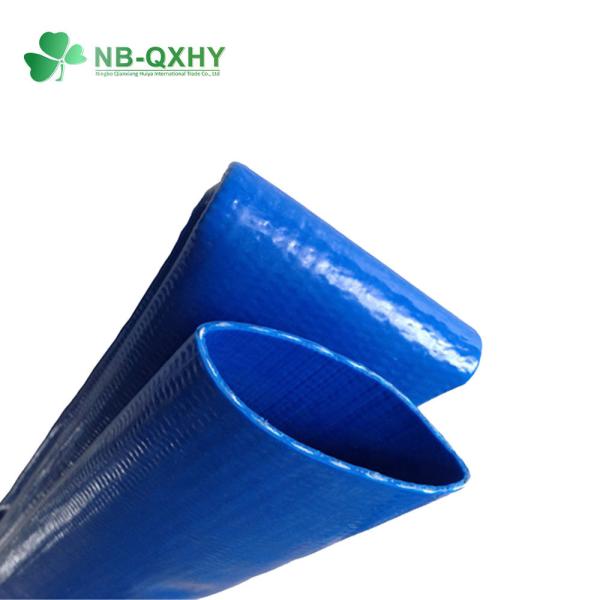

Heavy Duty 10 Bar Layflat PVC Hose Irrigation Pipe Hose Industrial
Hose Water Delivery Discharge Hose
PVC layflat hose, which was made of Dacron and coated with good quality plastic, has
such advantages as Anti-freezing, anti-pressure, anti-corrosion
properties, Easy to move and fold etc.
This kind hose has different specifications from 0.8"to 12" and
working pressure from 0.2Mpa to0.6Mpa. The hoses are suitable for
use on farms, camps, oilrigs, mines, and construction sites.
Features & Application:1. High strength fiber woven layer, light weight, soft texture,
good flexibility, uneasy to fade;
2. Eco-friendly PVC, non-toxic, no odor,resistant to anti-UV;
3. Anti-high pressure, corrosion resistance and ageing resistance;
4. Easy for storage and use, folding, installation,high efficiency
irrigation and save more costs;
5. Applied to agricultural irrigation, construction site, mine
engineering, emergency water supply , drainage and pump.etc.
6.Main Market:
South America, America, Africa, Southeast Asia.
Support to Print Word and Logo in White ink!
1, PVC LAYFLAT HOSE SPECIFICATION| Model | Size | Thckness (mm) | Weight ( g/m) | W.P(Bar) | B.P(Bar) |
| Economic duty layflat | 1" | 26mm | 1.3 | 150 | 4 | 12 |
| 1 1/4" | 33mm | 1.2 | 170 | 4 | 12 |
| 1 1/2" | 41mm | 1.25 | 205 | 5 | 15 |
| 2" | 53mm | 1 | 230 | 4 | 12 |
| 2 1/2" | 66mm | 1.15 | 320 | 4 | 12 |
| 3" | 78mm | 1.1 | 360 | 4 | 12 |
| 4" | 104mm | 1.3 | 550 | 4 | 12 |
| 5" | 128mm | 1.35 | 750 | 4 | 12 |
| 6" | 155mm | 1.4 | 900 | 4 | 12 |
| 8" | 202mm | 2 | 1785 | 3 | 9 |
| 10" | 250mm | 2.65 | 2650 | 2.5 | 7.5 |
| 12" | 302mm | 2.55 | 3100 | 2 | 6 |
|
| MODEL | SIZE | Thckness (mm) | Weight ( g/m) | W.P(Bar) | B.P(Bar) |
Medium Duty layflat
| 3/4" | 20mm | 1.35 | 112 | 7 | 21 |
| 1" | 26mm | 1.4 | 165 | 7 | 21 |
| 1 1/4" | 33mm | 1.3 | 190 | 7 | 21 |
| 1 1/2" | 41mm | 1.3 | 230 | 7 | 21 |
| 2" | 53mm | 1.3 | 300 | 6 | 18 |
| 2 1/2" | 66mm | 1.7 | 430 | 7 | 21 |
| 3" | 78mm | 1.45 | 500 | 6 | 18 |
| 4" | 104mm | 2.3 | 865 | 6 | 18 |
| 5" | 128mm | 2.3 | 1080 | 6 | 18 |
| 6" | 155mm | 2.4 | 1600 | 6 | 18 |
| 8" | 202mm | 2.65 | 2020 | 4 | 12 |
|
| Model | SIZE | Thickness(mm) | Weight (g/m) | W.P ( BAR) | B.P (BAR) |
Heavy Duty layflat
| 3/4"" | 20mm | 1.55 | 140 | 10.5 | 31.5 |
| 1" | 26mm | 1.7 | 200 | 10.5 | 31.5 |
| 1 1/4" | 33mm | 1.45 | 210 | 10.5 | 31.5 |
| 1 1/2" | 41mm | 1.9 | 290 | 10.5 | 31.5 |
| 2" | 53mm | 1.5 | 350 | 8 | 24 |
| 2 1/2" | 66mm | 2.2 | 650 | 10.5 | 31.5 |
| 3" | 78mm | 2.5 | 850 | 10 | 30 |
| 4" | 104mm | 2.5 | 1000 | 9 | 27 |
| 5" | 127mm | 3.1 | 1800 | 8 | 24 |
| 6" | 155mm | 3.3 | 2000 | 8 | 24 |
| 8" | 202mm | 2.95 | 2200 | 5 | 15 |
3, FAQA: Advantage1.Lightweight, tough, durable and long service life.
2.Rolls up flat is easy move, retrieval and handle.
3.Resistance to abrasion, corrosion, heat and aging.
4.Easy extend to longer length with hose coupling and clamp.
5 Non-toxic, tasteless, environmental protection
B: Why choose QX?
1,We can produce lay flat hose acording to your request for the
length thickness and working pressure per roll.Before send you
right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-100cm free sample for your test or little longer,
you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m each size, but for first cooperation we
also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally
deliver within 15 working days after receive deposit.
