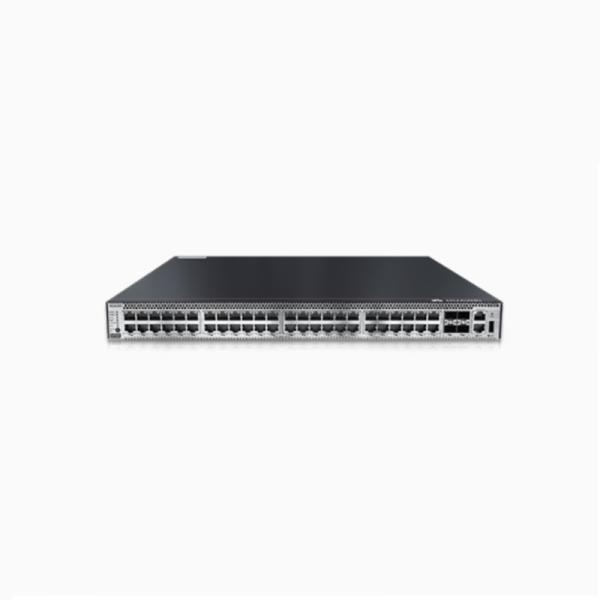

    CloudEngine S5731-S48P4X Layer 3 Switch with 1U Chassis and 10/100/1000Mbps Transmission

    Ask Lasest Price
    Brand Name : OEM
    Model Number : CloudEngine S5731-S48P4X
    Supply Ability : 10000 Set/Sets per Month
    Price : $200.00 - $1,300.00/sets
    • Product Details
    • Company Profile

    CloudEngine S5731-S48P4X Layer 3 Switch with 1U Chassis and 10/100/1000Mbps Transmission

    Products Description
    CloudEngine S5731S-S Series Switches
    CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports. CloudEngine S5731S-S series switches are next-generation gigabit access switches. Built on unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.
    CloudEngine S5731S-S Series
    Product Model
    CloudEngine S5731S-S24T4X-A
    CloudEngine S5731S-S24P4X-A
    CloudEngine S5731S-S48T4X-A
    CloudEngine S5731S-S48P4X-A
    Packet forwarding rate
    108/126Mpps
    108/126Mpps
    144/166Mpps
    144/166Mpps
    Switching Capacity2
    672Gbps/6.72Tbps
    672Gbps/6.72Tbps
    672Gbps/6.72Tbps
    672Gbps/6.72Tbps
    Fixed Ports
    24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
    24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
    48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
    48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
    PoE+
    Not supported
    supported
    Not supported
    supported
    Power module
    1+1 backup, with 1 150W AC power module by default
    1+1 backup, with 1 1000W AC power module by default
    1+1 backup, with 1 150W AC power module by default
    1+1 backup, with 1 1000W AC power module by default
    MAC Features
    32,000 MAC entries
    MAC address learning and aging
    Static, dynamic, and blackhole MAC address entries
    Packet filtering based on source MAC addresses
    VLAN Features
    4094 VLANs
    Guest VLAN, voice VLAN
    GVRP
    MUX VLAN
    VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
    1:1 and N:1 VLAN mapping
    SVF
    Plug-and-play SVF client
    Automatic software and patch loading to clients
    One-click and automatic delivery of service configurations
    Independent client operations
    Interoperability
    VBST (compatible with PVST/PVST+/RPVST)
    LNP (similar to DTP)
    VCMP (similar to VTP)
    For detailed interoperability certifications and test reports
    More Products
    Company Profile
    Certifications
    Product packaging
    FAQ
    Q1: Can I get some samples?
    A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

    Q2: Do you receive customized order?
    A: Yes, ODM & OEM are welcomed.

    Q3:
    What's the lead time.
    A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

    Q4:
    What's your warranty terms?
    A: We supply 12 months warranty time.

    Q5:
    What's your payment terms?
    A: We receive Escrow, T/T, West Union, Cash and etc
