Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh

    Buy cheap Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh from wholesalers

    Buy cheap Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh from wholesalers
    • Buy cheap Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh from wholesalers
    • Buy cheap Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh from wholesalers

    Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh

    Ask Lasest Price
    Brand Name : CHANT
    Model Number : CHANT-C 1008
    Certification : ISO9001
    Price : Usd 4.2-28 /m2
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 8000m2/week
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Security Architectural Wire Mesh , Flat Stainless Steel Architectural Woven Mesh

    Security Architectural Wire Mesh , Flat Stainless Architectural Woven Mesh

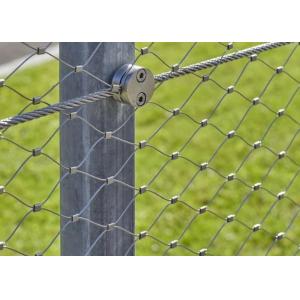

    Stainless steel rope mesh has unique characteristics that allow design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.

    There are two types of flexible wire rope meshes in construction: ferrule type and knotted.



    Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facades, safety nettings and green wall systems.



    Product NameFlexible Stainless Steel Wire Cable Net Rope Mesh
    Raw MaterialStainless Steel, Galvanized Wire
    TypeFerrule Type or Knotted Type
    SpecificationRope, 7x7 or 7x19
    Mesh, 30mm to 200mm
    Wire diameter, 1.0 to 4.0mm
    FeatureHandle Made
    Environmental Protection
    Extensive Use
    Premium Quality
    Direct from Factory
    Product Life Cycle
    Lifetime Support
    ApplicationSuspension Bridge Railing Mesh
    Stainless steel rope mesh is also mainly used in the suspension bridge railing.
    Helideck Mesh
    Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is
    installed around the helicopter landing deck.

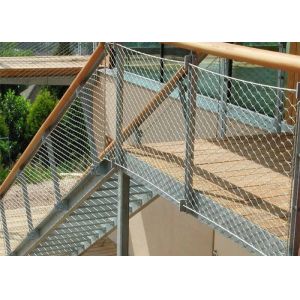

    Balustrade Mesh
    Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
    Decoration Mesh
    The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of
    building, such as ceiling and curtain wall.
    Green Wall
    Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green
    wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
    Aviary Netting
    The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural
    environment for birds to make them live comfortably.
    Zoo Mesh
    Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
    Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
    Slope Protection Rope Mesh
    Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or
    other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.
    PackingThe rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.


    Technical Specifications of Tec-Sieve Ferruled Type Stainless Steel Rope Mesh



    Rope Constructin


    Rope Diameter


    Opening Size

    Breaking Force
    InchmmInchmmKN
    7 × 191/83.24.7" × 4.7"120 × 1207.38
    7 × 191/83.24" × 4"102 × 1027.38
    7 × 191/83.23.6" × 3.6"90 × 907.38
    7 × 191/83.23" × 3"76 × 767.38
    7 × 191/83.22" × 2"51 × 517.38
    7 × 73/322.44" × 4"102 × 1024.18
    7 × 73/322.43.6" × 3.6"90 × 904.18
    7 × 73/322.43" × 3"76 × 764.18
    7 × 73/322.42.4" × 2.4"60 × 604.18
    7 × 73/322.42" × 2"51 × 514.18
    7 × 75/6423" × 3"76 × 763.17
    7 × 75/6422.4" × 2.4"60 × 603.17
    7 × 75/6422" × 2"51 × 513.17
    7 × 75/6421.5" × 1.5"38 × 383.17
    7 × 71/161.63" × 3"76 × 762.17
    7 × 71/161.62" × 2"51 × 512.17
    7 × 71/161.61.5" × 1.5"38 × 382.17
    7 × 71/161.61.2" × 1.2"30 × 302.17
    7 × 71/161.61" × 1"25 × 252.17
    7 × 73/641.22" × 2"51 × 511.22
    7 × 73/641.21.5" × 1.5"38 × 381.22
    7 × 73/641.21.2" × 1.2"30 × 301.22
    7 × 73/641.21" × 1"25 × 251.22
