Q195 Q235 Carbon Steel Bright Steel Common Wire Nails Smooth Shank
Common nails are strong and stiff, and their shanks have greater
diameters than other nails. Both common and box nails have
notches near the head of the nail. These notches allow the nails to
hold better. Some will have screw-like threads at the top of
the nail head for extra holding power. Box nails have thinner
shanks than common nails and shouldn't be used for framing
construction. When nailing two boards together, both types of nails
should completely penetrate one piece of wood and should penetrate
the other piece with half its length. This ensures the nail is
strong enough for the job.
Common Iron Nails Product Information
Common Iron Nails Process:
1.wire drawing:make the needed diameter of wire iron common nail
for constructions
2.cold upsetting: make the cap and diamond point
3.polished: by this process the polished wire iron common nail for
construction is over.
Material: Low carton steel(Q195, Q235)
Head: checkred round head countersunk
Shank: Smooth
Point: sharp diamont point
Diameter: BWG5-18
Length: 1/2''-8''
Finish: Polished, E.G., H.D.G
Common Iron Nails Product Specification
| Product Name | Common Iron Nails |
| Penny Size | 6D | 8D | 10 D | 20 D |
| Nail Length | 2"(50.8mm) | 2-1/2"(63.5mm) | 3"(76.2mm) | 4"(101.6mm) |
| Gauge | 12 | 11 | 10 | 8 |
| Shank Diameter | 0.109" | 0.120" | 0.134" | 0.165" |
| Package | 32 L.B.S | 32 L.B.S | 28 L.B.S | 32 L.B.S
|
Common Iron Nails Product Type
The type of common iron nails depends on the specific application
and the materials. Common nails are general-purpose nails with a
smooth shank and a flat head, suitable for various woodworking and
construction projects. Here are some common types of common nails
and their typical uses:
1.Smooth-Shank Common Nails: These are the standard nails with a
smooth, round shank and a flat head. They are commonly used for
framing, general carpentry, and other construction projects where
appearance is not a significant concern.
2.Galvanized Common Nails: These nails are coated with a layer of
zinc to provide corrosion resistance, making them suitable for
outdoor applications or where exposure to moisture is a concern.
They are commonly used in outdoor construction, decks, and fencing.
3.Hot-Dipped Galvanized Common Nails: Similar to galvanized nails,
these nails are dipped in molten zinc, providing even better
corrosion resistance. They are suitable for harsh outdoor
environments and marine applications. 4.Cement-Coated Common Nails:
These nails have a layer of cement-like coating, which provides
extra holding power and grip. They are commonly used in concrete
formwork and masonry projects.
5.Box Nails: Box nails are thinner than common nails and have a
smaller head. They are used for light-duty construction and
woodworking projects where the wood is more prone to splitting.
6.Finishing Nails: While technically not common nails, finishing
nails are similar in shape but have a smaller, less noticeable
head. They are ideal for trim work and projects where aesthetics
are crucial.
Common Iron Nails Product Application
Common Iron nails are suitable for soft and hard wood, bamboo
devices, ordinary plastics, sandy sand, furniture, packaging wooden
boxes, etc. Widely used in architecture, decoration, decoration,
and decoration.

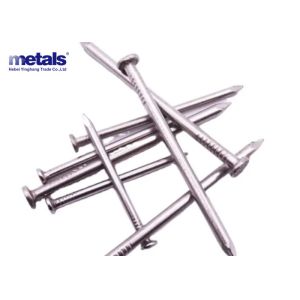

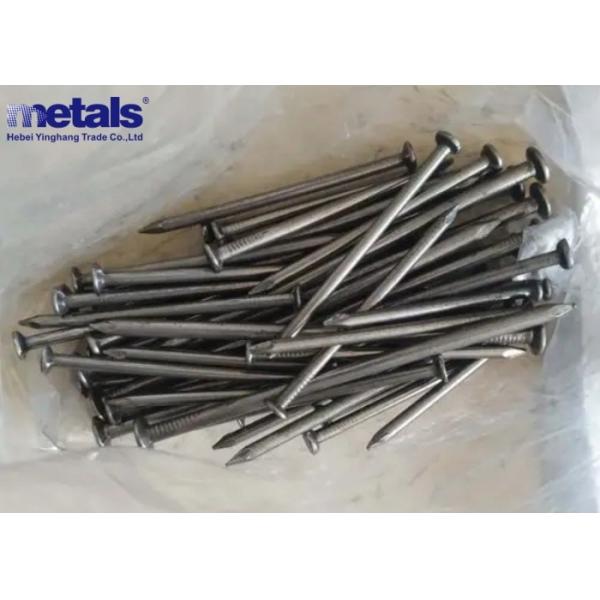

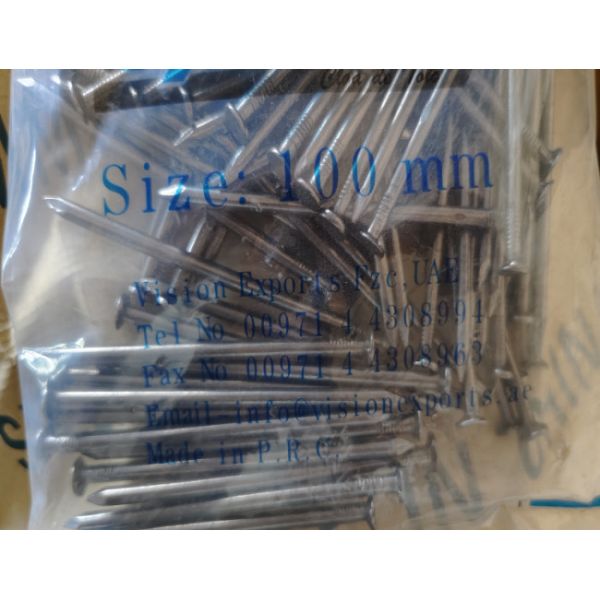

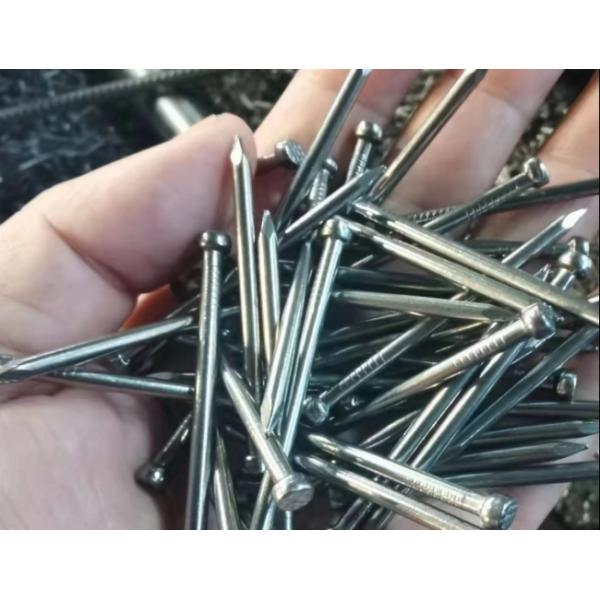

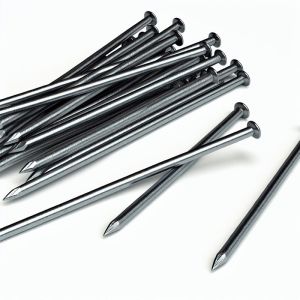

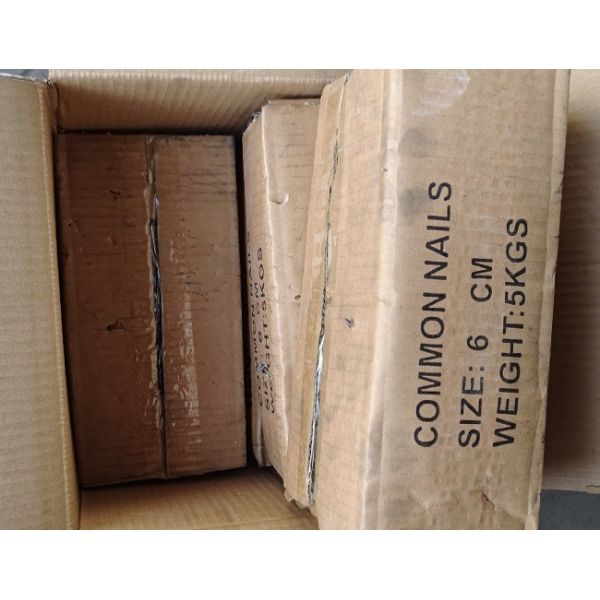

Common Iron Nails Product Pictures
