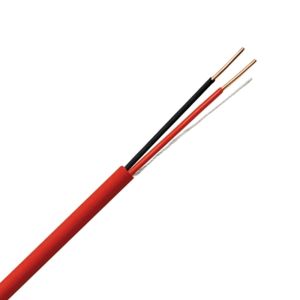

2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System

    Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers

    Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers
    • Buy cheap 2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System from wholesalers

    2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System

    Ask Lasest Price
    Model Number : UL FPLR
    Brand Name : ExactCables
    Certification : CE, RoHS, CCC, CPR
    Price : $0.10 - $0.50/meters
    • Product Details
    • Company Profile

    2x2.0mm2 Fire Resistant Cable FPLR 2 Core Al/Foil Shielded for Fire Alarm System

    Product Description
    Exact Cables Shielded/Unshielded 2Core Fire Alarm Cable Fire Resistant Cable
    JE-H(St)H 300/500V PH120 - E30/E60 PH30/60/90/120
    Specification
    TYPE: 1x2x0.80mm2, 2x2x0.80mm2, 3x2x0.80mm2, 4x2x0.80mm2, 1x2x1mm2, 2x2x1mm2, 1x2x1.5mm2, 2x2x1.5mm2, 1x2x2.5mm2
    Features
    Values
    Rules
    Conductors
    annealed red copper cl. 1
    CEI EN 60228 (Table 9)
    Insulation
    cera mifiable silicone rubber
    Cores colour
    (blue-red) - (yellow-grey) - (green-brown) - (white-black)
    DIN VDE 815
    Flame protection
    glass-fibre tape thickness 0,12 mm
    Drain wire
    annealed tinned copper
    Screen
    Al/Pet tape thickness 9/23 µm covering > 110%
    Sheath
    LSZH compound M1 quality
    CEI EN 50363
    Sheath colour
    red RAL 3000
    Fire retardant
    CEI EN 60332-3-24
    Flame retardant
    CEI EN 60332-1-2
    Halogen free
    (< 0,5 mg/g - 0,5%)
    CEI EN 50267-2-1/2 - IEC 60754-1/2
    Low smoke emission
    (Tras mittance > 60%)
    CEI EN 61034-2
    Fire resistant
    duration 120 min. at temperature of 830 °C. (- 0 ÷ + 40 °C)
    CEI EN 50200
    Fire resistant
    (E30/E60)
    DIN VDE 4102-12
    Fire resistant
    duration 180 min. at temperature of 750 °C FE180
    IEC 60331-21 - VDE 472-814
    DC resistance
    according to
    CEI EN 60228 (Table 9)
    Rated voltage Uo/U
    300/500 V
    Max voltage
    550 V
    Testing voltage
    2 kV
    Max working temperature
    90 °C
    Max conductor temperature
    180 °C
    Short circuit temperature
    350 °C
    Min. installation temperature
    0 °C
    Bending radius
    Ø x 10
    Why Choose Us
    We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.
    Customer Photos
    Product packaging
    Certifications
    FAQ
    Q1: What kind of cable do you produce?
    A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
    telecommunication cables, telephone cables, power cables and other various of cables and wires
    We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
    dishe,splitters,amplifer,optical receiver,optical transmitter etc
    Q2: What's your MOQ? Can you offer free samples?
    A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
    Q3: What's your delivery time?
    A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
    Q4: What's your payment term?
    A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
    Q5:What's your trade term?
    A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
    Q6: Where is your factory located? How can I visit there?
    A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
    clients, from home or abroad, are warmly welcome to visit us!
