    Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor

    Ask Lasest Price
    Brand Name : GH
    Supply Ability : 20 Unit/Units per Month
    Price : $5,000.00 - $40,000.00/pieces
    • Product Details
    • Company Profile

    Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor

    Recommend Products
    Filling，locking capping and labeling machine production line process:

    Put the bottle on the conveyor belt manually -- automatic filling -- automatic cap sorter and put cap-- automatic locking capping--automatic vertical labeling

    (Production line can be customized according to customer requirements)

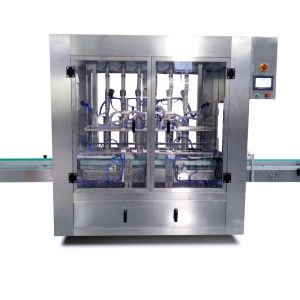

    Automatic servo piston filling machine


    Automatic servo piston type filling machine，it is integrated with electrical and pneumatic all together，with PLC touch screen control system, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical, chemical and Medical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.

    Technical parameters

    1.Production capacity: 4 heads
    (Customized 4,6,8,10,12,14,16 heads)
    2.Filling method: servo piston quantitative filling
    3.Filling capacity: 100~5000ml
    4.Filling speed：1000 BPH
    5.Filling accuracy: ±1%
    6.Air pressure: 0.6-0.8MPa
    7.Power: 1.5KW/AC220V 50/60HZ




    Automatic locking capping machine

    This equipment is suitable for automatic locking or capping of metal straight aluminum caps. According to the screw thread of the bottle mouth, it can be screwed out of the cap and lock the bottle cap. It is often used in pharmaceuticals, drinks and beverages industries such as oral liquid and liquor, and plays a role in Anti-theft, anti-leakage.
    Technical parameters
    1.Production capacity: 20~60 bottles/minute

    2.Lock cap range: Φ10~φ55mm (according to sample bottle)

    3.Bottle height: 50~300mm

    4.Voltage: 220V 50Hz

    5.Power: 2KW

    6.Cap type: metal aluminum cap


    Automatic vertical labeling machine

    Automatic self-adhesive vertical round bottle labeling machine is widely used for the labeling of circumferential surface objects of various specifications, and taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics, etc. Such as drink bottles, wine bottles, sauce bottles, oil bottles, both full round/half round labeling, double labeling on the front and back of the circle, and the from-to-back labeling space can be adjusted.
    Technical parameters

    1.Label size: length 15mm~290mm; width 15mm~150mm
    2.Product size: Φ25mm~90mm;
    Product height: 25~300mm
    3.The outside diameter of the label: Φ280mm;
    Roll diameter: Φ76mm
    4.Labeling speed: 10~100 bottles/minute
    5.Labeling accuracy: ±1mm
    6.Air pressure: 0.6~0.8Mpa
    7.Power: 1kw
    8.Voltage: 220V 50Hz
    Specification
    item
    value
    Production Capacity
    1000 BPH
    Condition
    New
    Automatic Grade
    Automatic
    Driven Type
    electric
    Voltage
    220V/380V
    Place of Origin
    China
    Dimension(L*W*H)
    7000*1500*2400mm
    Weight (KG)
    1700
    Key Selling Points
    High-accuracy
    Filling head
    4 heads (customizd)
    Filling temperature
    normal temperature
    Filling range
    100~1000ml,1000~2000ml,3000~4000ml,5000ml
    Suitable for
    beverage and wine materials
    Filling error
    ±1% error
    Air pressure
    0.6-0.8MPa
    Power
    Whole line about 4.5kw
    Capping form
    locking capping machine


    Matching equipment for production line

    Bottle round table feeding turntable
    Bottle washing machine
    Drying machine
    Aluminum foil sealing machine
    Positioning labeling machine
    Automatic vertical labeling machine
    Automatoc single side labeling machine
    Automatoc double sides labeling machine
    Elevator cap sorter
    Vibrating cap sorter
    Company Profile
    Packaging & Delivery
    Customer Photos
    FAQ
    1: Q: Is your company a factory?
    A: Yes, we are a machinery factory that located in Guangzhou, China.
    2: Q: Do you have certificates ?
    A: Yes. CE, GMP quality.
    3: Q: What are the payment methods?
    A: T/T, Cash, Western Union is accepted.
    For regular order, 50% front payment, 50% balance before shiping.
    4: Q: What's the lead time ?
    A: Usually our delivery time is around 30 to 45 days.
    5: Q: Do you support OEM/ODM?
    A: Yes, we can accept OEM/ODM.
    6: Q: How to pay Express Charge if order samples ?
    A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
    If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
    7: Q: Deliver goods by air or by ship ?
    A: Both are okay, you would choose your agent or we would arrange for you,.
    8: Q: How to visit your factory ?
    A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
