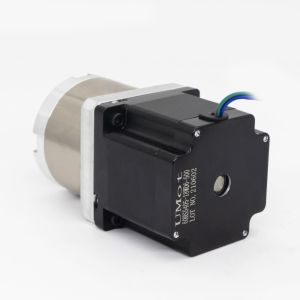

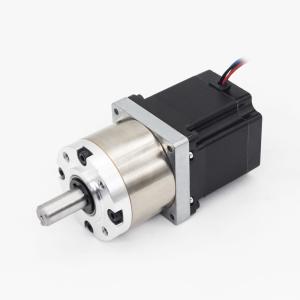

    High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase

    Ask Lasest Price
    Brand Name : Umot
    Model Number : 60HS5405
    Certification : RoHS
    Price : $68.20 - $74.80/pieces
    • Product Details
    • Company Profile

    High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase

    Products Description
    item
    value
    Warranty
    3months-1year
    Place of Origin
    China
    Brand Name
    Umot
    Model Number
    60HS5405
    Phase
    2
    Type
    Hybrid
    Current / Phase
    3.5A
    Certification
    CCC, ce, RoHS
    Motor length
    60x55mm
    Ring material
    Metal
    Reduction ratio
    3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
    Number of gear trains
    1-3
    Efficiency
    73-90%
    Bearing at output
    Ball bearings
    Max radial load(10mm from flange)
    300N
    Max shaft axial load
    200N
    Voltage
    2.98A
    Gearbox length
    37.8-60.8mm
