Product Description
1.Main Instruction
This complete machine is a fully automatic high-speed wrapping
machine, which using automatic- control to convey and pack foods,
such as chocolate and other food which are not easily be handled or
fragile.
The complete machine consist of one set SL-SBZB450D Folded Packing
Machine and one set SL-SBZL500 Arranging and Feeding Machine.
| 1 UNIT CHOCOLATE WRAPPING MACHINE | 1 UNIT ARRANGING AND FEEDING MACHINE |
 |  |
Machine Material
| Model | Name | Material |
| SL-SBZB450D | Folded Wrapping Machine | machine body: spherical iron ; Clip: alloy steel ; Touching with candy parts: stainless steel 304 and PU. |
| SL-SBZL500 | Arranging and Feeding Machine | machine body: carbon steel Touching with candy parts: PU. |
Application Range

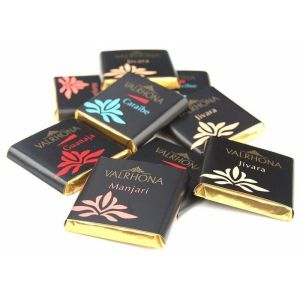

SL-SBZB450D series automatic packing machines are mainly used for
the folding and enveloping style wrapping of chocolate, hard candy,
pressed candy, etc. in certain sizes and shapes. The model is
compatible with various types of wrapping materials. Meanwhile,
brushing wrapping is also available on this model by replacing
several tool parts.
Technical Specificat
1.Main Specification and Technical Parameters
Wrapping Speed | 240-260pic/min |
Size of chocolate | length | 10-80mm |
width | 4-45mm |
Height | 4-35mm |
Total power | 5KW |
Power supply | 380V/220V 50HZ 3P (voltage must be stable) |
Air supply | 0.6Mpa |
Qualification rate of packaging | >=98% |
2.Packing material parameters
Wrapper width | 200mm |
Wrapper material | Foil/PET/Film and so on (must be easy to fold ) |
Wrapper roller size | Paper coin diameter:76-90mm ,roller diameter ≤300mm |
3.Arranging and Feeding Machine Technical Specification and main
components
Technical Specification | Main Components |
Total Power:2KW Compressed Air:0.6Mpa | Frequency Converter: Taiwan(Delta) |
Packing & shipping
(1)Package Standard: Wooden case package as the international trade package
(2)Package Supply and Recovery: Supplier supply package according to customer requirements and
recovery depends on customer
(3)Package Size and Weight(just for reference )
Gross weight | Wrapping machine | 1600KG | Total 2600KG |
Feeding Conveyor | 1000KG |
Dimensions of machine (L*W*H) | Wrapping machine | 2960*1560*2150mm*1 | Total 16m³ |
Feeding Conveyor | 1560*860*1250mm*2 |
2360*860*1250mm*1 |
FAQ
Q1: What’s the payment term you accept?
A1: By T/T or L/C.
Q2: What's your delivery time?
A2: Normal time is 60 days for a single packing machine, except for
custom packing machines. And the actual time will vary from
different order conditions.
Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in
fully closed standard wooden cases with the strong bottom pallet.
Q4: How to control your machine quality?
A4: Quality is our belief. We are always focused on Professional
design and quality. High precision for parts processing. Use of
quality raw material. Use of international brand electrical
components.Assembly as per technical standard. Performing trial
running and pre-shipment inspection.
Q5: Which countries have you ever exported your machines to?
A5: Malaysia, Belgium, Korea, Russia, Hungary, USA(California),
Mexico, India, Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam,
Ecuador, Algeria, California, and Ukraine.
Q6: Why choose us?
A6: (1) Quality machine:
The beautiful outer shape and rational configuration.
High-quality material and renown international brand electrical
components.
Advanced control system with PLC, HMI, and Servo.
Simple and easy debugging and operation.
Strong functionality, stable performance and easy maintenance.
High cost-effective performance.
(2)Technical service:
OEM manufacturing. Free on-site technical training.
Optimal customized solution.
Quick response to the user’s query.
Highly efficient and satisfied after-sales service.
Q7: What’s the language used for the operating system?
A7: English is used as an operation control language.
Q8: What’s the warranty period?
A8: 12 months after shipment.
Q9: What about after-sales service?
A9: When necessary, we will send our technician to the customer’s
factory for installing, debugging and operating the machines, as
well as free technical training service. But, our customer shall
bear the service cost for visa, round-trip ticket, meal, hotel and
a daily allowance of usd50.
