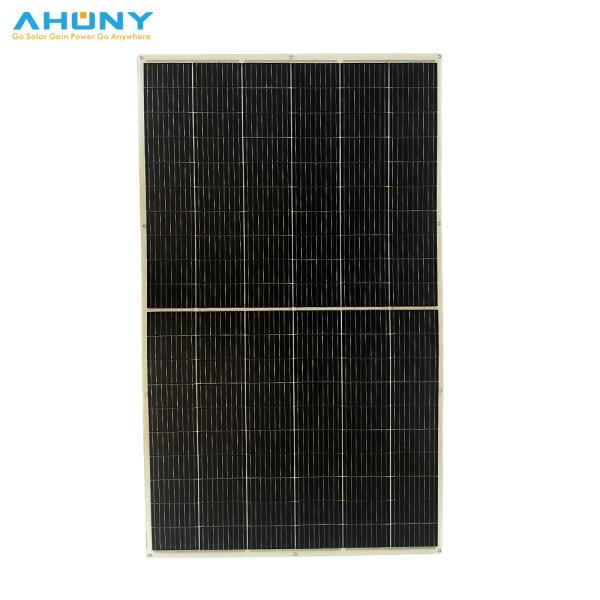

    ETFE 330w Mono Solar Panel HCF Solar Cell Solar Panels For Yachts Flexible

    Ask Lasest Price
    Brand Name : Ahony
    Model Number : eGo S330M
    Price : $224.40/pieces 10-99 pieces
    • Product Details
    • Company Profile

    ETFE 330w Mono Solar Panel HCF Solar Cell Solar Panels For Yachts Flexible

    330w ETFE Mono Flexible Solar Panel Efficiency HCF Solar Cell Marine Panel Yacht OEM

    Product Description

    1. latest generation 24% Solar Cell Efficiency


    Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.


    2. MBB technology less power loss

    9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.


    3. 3.22kg/m ultralight material

    Ultralight,1.6kg only for 100w and 3.22kg per square meter.


    Model No.eGo S330M
    Product Namesemi flexible solar panel
    Maximum Power[Wp]330
    Solar CellMonocrystalline solar cell
    Cell Array[Pcs]6*10
    Cell Efficiency22.7%
    Size[mm]half cut 1000*1670*2
    Max Power Voltage Vmp[V]34.2
    Max Power Current Imp[A]9.65
    Open Circuit Voltage Voc[V]40.01
    Short Circuit Current Isc[A]10.18
    Net.Weight[kg]8.5
    Power tolerance[%]±5%
    NOCT[℃]45±2
    Operating Temperature[℃]-40/+85
    Temperature Coefficient Pmax[%/℃]-0.41
    Temperature Coefficient Voc[[%/℃]-0.32
    Temperature Coefficient Isc[[%/℃]0.04
    Maximum System Voltage[V]1000 V
    Maximum Reverse Current[A]IR<2A-0
    CertificationCE ROHS
    Surface/BacksheetETFE+AP2
    Maximum bend radius(θ)60°
    Cables and ConnectorsPV-XC505,0.9m cable and 1 pair of MC18 connector
    Standard Test ConditionsSTC: 1000W/m², AM 1.5 and cell temp 25°C
    Other notesround corner R10,with eyelets
    Package1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

    Market

    Flexible solar panel
