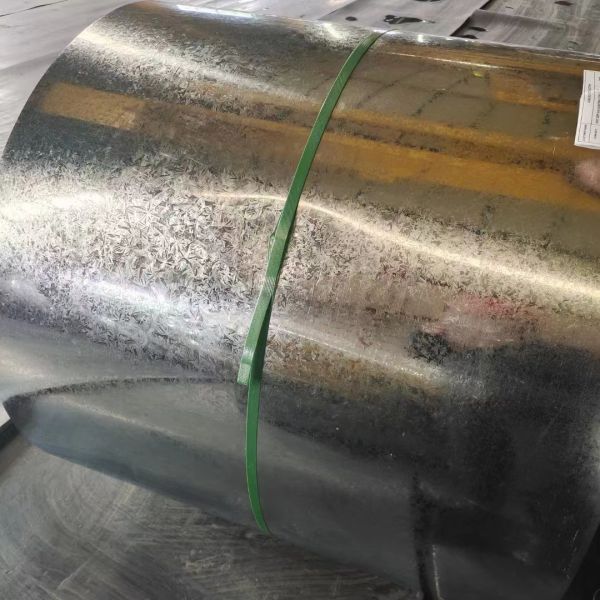

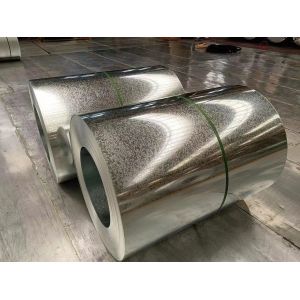

1.2 Mm Thickness Gi Galvanized Steel Roll Slit Coils
A galvanized steel roll refers to a continuous coil of galvanized
steel that is wound onto a spool or roll. It is a long, continuous
sheet of steel that has been coated with zinc through the process
of galvanization.
The galvanization process involves immersing the steel roll in a
bath of molten zinc or applying a zinc coating onto its surface.
This zinc coating provides protection against corrosion, making the
steel more resistant to rust and extending its lifespan.
Galvanized steel rolls are commonly used in various industries and
applications. They are particularly valued in construction, where
they are used for roofing, siding, and structural components.
Galvanized steel rolls are also used in manufacturing processes for
products such as pipes, tubes, HVAC systems, automotive parts, and
electrical enclosures.
The dimensions and specifications of galvanized steel rolls can
vary, including the thickness, width, and length, depending on the
specific requirements of the application. These rolls are available
in a range of grades and finishes to meet different performance and
aesthetic needs.
Product Name | Dx 51d Factory Direct Sell Galvanized Steel Coil Price And Zinc
Coated Galvanized Steel Strip |
Width | 600mm-1500mm,according to customer's requirement |
Thickness | 0.12-6.00mm,or customer's requirement |
Length | 6-12m or According To Customer's Demends |
Surface Structure | Normal spangle coating(NS),minimized spangle
coating(MS),spangle-free(FS) |
Advantages | 1.low foundation cost 2.easy construction 3.time and labor saving |
Type of Coating | Hot Dipped Galvanized Steel(HDGI)/Electro-Galvanised Steel(EGI) |
| 1. Galvanized
2. PVC,Black and color painting
3. Transparent oil,anti-rust oil
4. According to clients requirement |
| 1. Fence, greenhouse, door pipe,greenhouse
2. Low pressure liquid, water, gas, oil, line pipe
3. For both indoor and outdoor the building construction
4. Widely used in scaffolding construction which is much cheaper
and convenient |
Packing | Bundle, or with all kinds of colors PVC or as your requirements |
◆ 1. Pre-Treatment Process
Some rolling oil and other contaminants remain on the surface of
cold rolled steel sheets following processing. These are removed by
passing the electrically charged sheet through an alkaline solution
which induces an electrochemical reaction.
◆ 2. Annealing
The material properties of the pre-treated steel sheet can be
altered and improved through recrystallization during the annealing
process.
◆ 3. Hot-Dip Galvanizing
After passing through the annealing furnace, steel sheets are
dipped into a zinc pot where molten Zn is coated onto the surface.
The desired coating weight is achieved by removing excess zinc
before solidification with high-pressure air from an air knife.
◆ 4. Galvannealing
The surface of a steel sheet, after the air knife, can be coated
with a zinc compound prior to reheating in an annealing process. Zn
atoms diffuse into the Fe to create a Zn-Fe series alloy.
◆ 5. SPM & Chemical Treatment
In order to achieve a flat surface and an elegant finish, the steel
sheet is processed with a skin pass mill. In order to prevent the
white rust, which often forms on the surface of activated zinc, and
to improve corrosion resistance, the surface is coated with a
Cr-free resin.
◆ 6. Inspection & Coiling
Located at the line’s exit section are a side trimmer, inspection
table, oil coating machine and coiling equipment. At this station,
all products are inspected and judged relative to material
specifications required by the customer.
