    Soft Iron HB90 API 6A RX Ring Joint Gasket RTJ Gasket Types

    Ask Lasest Price
    Brand Name : Wenzhou Jingwei Seal Technology Co., Ltd.
    Model Number : RX ring joint gasket
    Certification : ISO9001
    Price : Negotiable
    Supply Ability : 100000pcs/month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Soft Iron HB90 API 6A RX Ring Joint Gasket RTJ Gasket Types

    Soft Iron HB90 API 6A RX Ring Joint Gasket

    We has more than 200,000 standard size ring joint gaskets in stock and available for immediate shipment. These include all popular sizes of “R”, “RX”, and “BX” style gaskets. Dan-Loc Group stocked gaskets include Low Carbon Steel, F5, 304, and 316 materials.

    The RX type RTJ gasket is manufactured in accordance to API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges. The RX is a pressure energized version of the R octagonal gasket and fits the R type flat bottomed groove. The RX has an increased height and utilizes the internal system pressure to energize and improve the seal as internal pressure increases. Some RX sizes have a pressure relief hole to equalize pressure on both sides of the sealing faces.

    Ring joint gaskets (RTJ Gasket) according to API 6A and ASME B16.20 for numerous industrial applications based on the customer required specifications with corrosive protection using electroplated zinc or alternate material coating of up to 0.0003” thickness.

    Type RX

    –NB1 1/2″ to 24″ Class Rating 720 to 5000 ASME B16.20

    –NB26″ to 36″ Class Rating 300 to 900 ASME B16.20 Series A

    –NB1 1/2″ to 20″ Class Rating API 6A

    RX Type Gasket


    Style RX type RTJ gaskets are manufactured in accordance with both API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges.
    Style RX is a pressure-energized adaptation of the standard Style R gasket. The RX is designed to fit the same groove design as a standard Style R, making the joints interchangeable. The modified design uses a pressure-energized effect that improves the efficiency of the seal as the internal pressure of the system increases.

    In order to reduce turbulent flow in adjoining flanges and prevent gasket/flange erosion Goodrich Gasket offers SPECIAL R, RX type joints with PTFE inserts. Goodrich Gasket also offers Nitrile Rubber coated ring joint gaskets (RTJ Gasket) used in pressure testing applications and as a protection for flange grooves and surfaces. Ring joint flanges with different ring groove diameters are sealed by Transition Ring joints, a different size and same PCD combination rings. Blind Ring joints, a standard ring joint with integral solid metallic centers blanks off flanges and pipe work. Flange Guards of closed cell neoprene foam readily compress under load protecting outside diameter of Ring joints in corrosive environments.

    Material Maximum hardness
    HB HRB
    Soft lron 90 56
    LowCS 120 68
    F5 130 72
    SS304 160 83
    SS304L 160 83
    SS309 160 83
    SS316 160 83
    SS316L 160 83
    SS316Ti 160 83
    SS321 160 83
    SS347 160 83
    SS410 140 86
    Nickel 200 110 62
    Monei 400 150 80
    Inconel 600 150 80
    Inconel 625 160 83
    Inconel 800/800H 180 89
    Inconel 825 160 80
    Hastelloy C276 190 83
    Type 904 160 83
    N07718 190 91
    F51 230 98
    F53 230 98
    F55 240 100

    Gasket type

    Ra

    μm

    RMS

    (μin)

    R 1.6 (63)
    RX 1.6 (63)
    BX 0.8 (32)

    RING

    NO.

    PRESSLURE ALASSES, API 6B

    PITCH

    DLAMETER

    OF RING

    P

    OUTSIDE

    DLAMETER

    OF RING

    0D

    WIDTH

    OF

    RING

    A

    HELCHT

    OF

    RING

    H

    WEIGHT

    Ibs.

    720-960and

    2000[Note(1)]

    2900[Note(1)]

    3000

    5000

    Rx20

    1 12

    -

    1 12

    1 12

    68.26

    76.20

    8.73

    19.05

    0.527

    Rx23

    2

    -

    -

    -

    82.55

    93.27

    11.91

    25.40

    1.15

    Rx24

    -

    -

    2

    2

    95.25

    105.97

    11.91

    25.40

    1.33

    Rx25

    -

    -

    -

    3 18

    101.60

    109.54

    8.73

    19.05

    1.42

    Rx26

    2 12

    -

    -

    -

    101.60

    111.92

    11.91

    25.40

    1.50

    Rx27

    -

    -

    2 12

    2 12

    107.95

    118.27

    11.91

    25.40

    1.73

    Rx31

    3

    -

    3

    -

    123.83

    134.54

    11.91

    25.40

    1.91

    Rx35

    -

    -

    -

    3

    136.53

    147.24

    11.91

    25.40

    2.09

    Rx37

    4

    -

    4

    -

    149.23

    159.94

    11.91

    25.40

    2.27

    Rx39

    -

    -

    -

    4

    161.93

    172.64

    11.91

    25.40

    2.54

    Rx41

    5

    -

    5

    -

    180.98

    191.69

    11.91

    25.40

    2.72

    Rx44

    -

    -

    -

    5

    193.68

    204.39

    11.91

    25.40

    2.96

    Rx45

    6

    -

    6

    -

    211.14

    281.85

    11.91

    25.40

    3.66

    Rx46

    -

    -

    -

    6

    211.14

    222.25

    13.49

    28.58

    8.56

    Rx47

    -

    -

    -

    8(2)

    228.60

    245.27

    19.84

    41.28

    3.79

    Rx49

    8

    -

    8

    -

    269.88

    280.59

    11.91

    25.40

    5.36

    Rx50

    -

    -

    -

    8

    269.88

    283.37

    16.67

    31.75

    4.56

    Rx53

    10

    -

    10

    -

    323.85

    334.57

    11.91

    25.40

    6.45

    Rx54

    -

    -

    -

    10

    323.85

    337.34

    16.67

    31.75

    5.36

    Rx57

    12

    -

    12

    -

    381.00

    391.72

    11.91

    25.40

    26.40

    Rx63

    -

    -

    -

    14

    419.10

    441.72

    26.99

    50.80

    6.63

    Rx65

    16

    -

    -

    -

    469.90

    480.62

    11.91

    25.40

    9.39

    Rx66

    -

    -

    16

    -

    469.90

    483.39

    16.67

    31.75

    7.52

    Rx69

    18

    -

    -

    -

    533.40

    544.12

    11.91

    25.40

    20.14

    Rx70

    -

    -

    18

    -

    533.40

    550.07

    19.84

    41.28

    11.63

    Rx73

    20

    -

    -

    -

    584.20

    596.11

    13.49

    31.75

    22.10

    Rx74

    -

    -

    20

    -

    584.20

    600.87

    19.84

    41.28

    0.790

    Rx82

    -

    1

    -

    -

    57.15

    67.87

    11.91

    25.40

    0.880

    Rx84

    -

    1 12

    -

    -

    63.50

    74.22

    11.91

    25.40

    0.880

    Rx85

    -

    2

    -

    -

    79.38

    90.09

    13.49

    25.40

    1.79

    Rx86

    -

    2 12

    -

    -

    90.49

    103.58

    15.08

    28.58

    1.98

    Rx87

    -

    3

    -

    -

    100.03

    113.11

    15.08

    28.58

    3.22

    Rx88

    -

    4

    -

    -

    123.83

    139.29

    17.46

    31.75

    2.98

    Rx89

    -

    3 12

    -

    -

    114.30

    129.78

    18.26

    31.75

    6.82

    Rx90

    -

    5

    -

    -

    155.58

    174.63

    19.84

    44.45

    17.10

    Rx91

    -

    10

    -

    -

    260.35

    286.94

    30.18

    45.24

    3.31

    Rx99

    8(2)

    -

    8(2)

    -

    234.95

    245.67

    11.91

    25.40

    -

    Rx201

    -

    -

    -

    1 38

    46.04

    51.46

    5.74

    11.30

    -

    Rx205

    -

    -

    -

    1 1316

    57.15

    62.31

    5.56

    11.10

    -

    Rx210

    -

    -

    -

    2 916

    88.90

    97.63

    9.53

    19.05

    -

    RX215

    -

    -

    -

    4 116

    130.18

    140.89

    11.91

    25.40

    -

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional production enterprise

    Q: How long is your delivery time?

    A: Generally it is 7-15 days for stock delivery, and 15-30 days for manufacturing goods , but it depands on the quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.

    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

    Q:How can we trust you to make a guaranteed deal?
    A:We can trade through alibaba credit guarantee orders, which will fully guarantee the effective rights and interests of buyers and sellers.

    Q:Package information?

    A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.

    If you have another question, pls feel free to contact us.

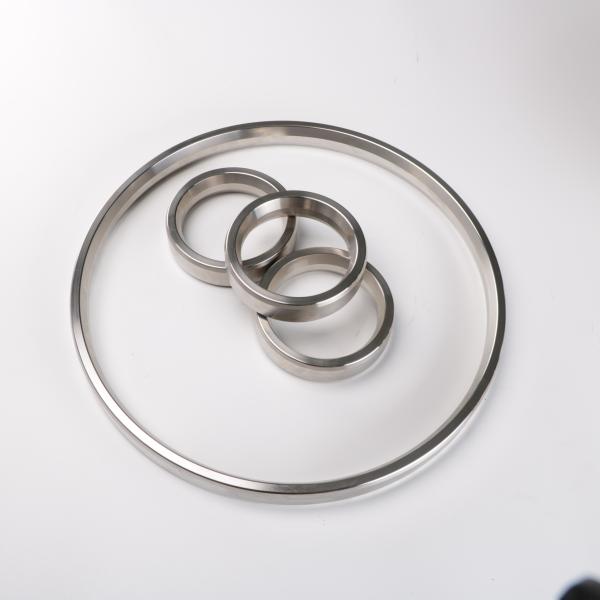

    Quality Soft Iron HB90 API 6A RX Ring Joint Gasket RTJ Gasket Types for sale
