Hydraulic Manometer Pressure Gauge

Accuracy class

* 2.5", 3" & 4": ± 1.6%

Descrition:

Refrigeration Pressure Gauge

Model No. SHP-05

Applications:

* Refrigeration test manifolds

* Compressed air systems

* Suitable for fluid medium which does not clog connection port or corrode copper alloy

Features:

* Design EN 837-1

* Dial size, case material, window and liquid:

2.5"(68mm) dial, blue or red painted steel case, twist-lock clear polycarbonate window

2.5" & 4" dials, 304 stainless steel & sealed ring, polycarbonate window, liquid-filled

4" dial, 304 stainless steel & bayonet bezel, safety glass window, dry or fillable

* Bottom connection, 1/4", 1/2" BSP, NPT etc.

* Internal element: Copper alloy, 316 stainless steel

* Brass or 316 stainless wetted parts

Operating Temperature

Ambient: -40°F to 150°F (-40°C to 65°C)

Media: 150°F (+65°C) maximum

Options

* Ranges: -1+12, -1+24 bar in black, R22/R134a/R404a/R507a coloured

* Available scales: MPa, kPa, kg/cm2, psi etc.

* Brass restrictor

* Black-painted steel case

* Refrigeration scales

* Special threaded connection

* Safety glass window

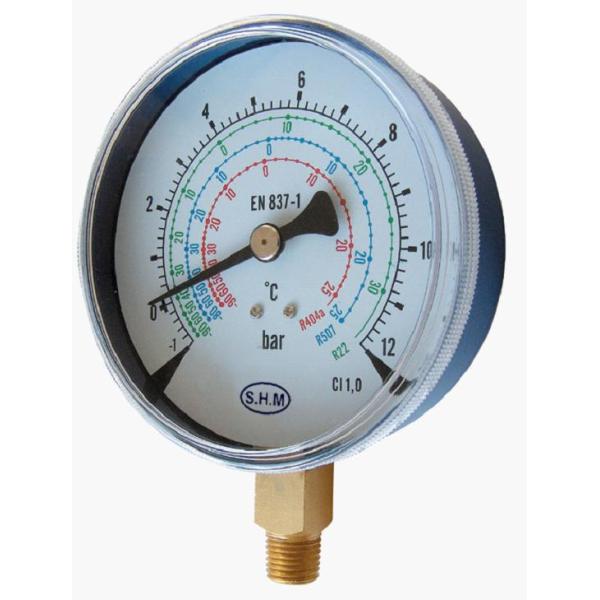

Refrigeration pressure gauge with painted steel case, red coloured

Refrigeration pressure gauge with painted steel case, blue coloured

Refrigeration pressure gauge with SS304 case and brass internals

Refrigeration pressure gauge with SS304 case and SS316 internals
