    12ton 18ton 360 Degree Rotation Excavator Spare Parts Hydraulic Rotating Orange Peel Demolition Scrap Rock Grapple

    Ask Lasest Price
    Brand Name : Huilian
    Model Number : 12ton 18ton
    Price : Competitive
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS per month
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

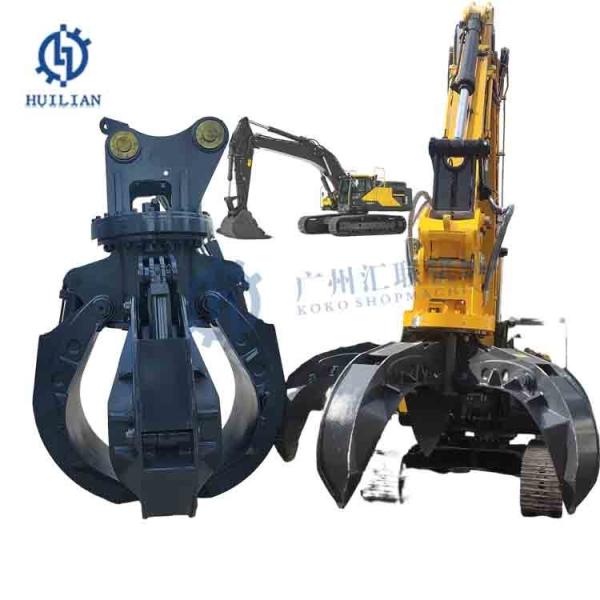

    12ton 18ton 360 Degree Rotation Excavator Spare Parts Hydraulic Rotating Orange Peel Demolition Scrap Rock Grapple

    Orange Peel Grapple Feature Details
    1. Low overall height for limited area.
    2. Robust structure &optimum weight
    3. Maximized Grapping capacity.
    4. Special heat-treatment &long life.
    5. Hose guard, cylinder high pressure hose installed inside.
    6. Shock-absorption-Cushion Cylinder.
    7.Full 360 degree hydraulic rotation.


    Orange Peel Grapple AppliCATEEEEEEEEion
    It is widely used in railway, port, engineering construction, other loading, unloading and handling operations. Widely used in
    railway, port, engineering construction, metal regeneration and other fields


    12ton 18ton 360 Degree Rotation Excavator Hydraulic Rotating Orange Peel Demolition Scrap Rock Grapple

    CompanyGuangzhou Huilian Machinery Equipment Co,.Ltd
    BrandHuilian
    Product NameExcavator Hydraulic Orange Peel Grapple
    Condition100% new
    AppliCATEEEEEEEEion12ton 18ton Excavator
    Main productExcavator parts and Hydraulic breaker parts
    MOQ1PCS
    Warranty6-12 Months
    Delivery TermsAfter got your payment
    Payment TermsT/T,PayPal,Ali Pay,West Union,Bank Transfer
    Shipping MethodsDHL,FEDEX,EMS,UPS,by sea


    Our Orange Peel Grapple Product Parameter

    ModelUnitHL06M5L-SXHL08M5L-SXHL10M5L-SXHL12M5L-SX
    Max. openingmm2100230025002750
    Opening heightmm1595180019001980
    Opening widthmm2320252027503000
    Closing heightmm1300148015501650
    Closing widthmm1966215022502416
    Max. pressureKg/cm²260260260260
    Max.oil flowL/min180-280180-280180-280180-280
    Capacity0.60.81.01.2
    Weightkg1200176018801980
    Suitable Excavatorton12-1818-2424-3636-40

    Product Maintenance:
    The lotus grip device is low maintenance, but it is recommended to check regularly for oil leakage to ensure that there is no fault
    Every 4 hours (less frequent) : Fill lubriCATEEEEEEEEing oil, lubriCATEEEEEEEEe shaft pin and rotating gear once Every half year or 1000 hours (whichever comes
    first) : replace the hydraulic cylinder oil seal and motor oil seal once. If the oil seal is not replaced within the specified period, there is a certain
    probability that other parts of the product will be damaged, such as: the cylinder pulled the cylinder, etc


    Product details and selling point:
    Shaft sleeve adopts heat treated 20 chromium molybdenum material.
    Use Q460 and NM400 steel material,light weight,high wear resistance.
    The cylinder high-pressure hose is built in to protect the hose. The cylinder is installed with a cushion, which has shock absorption effect. The built-in cylinder is not easy to pull the cylinder rod.
    protective plate installed, reinforcement, reduce the deformation and damage.
    Fine workmanship, even and deliCATEEEEEEEEe paint.
    The tip is made of wear-resistant 400 material.


    Company Profile

    Guangzhou Huilian Machinery Equipment Co., Ltd. is a professional development, production and sales of hydraulic crushers,quick couplers, high frequency vibration crushers, hydraulic shears, hydraulic crushers, stone apples, log grabs and other accessories for construction machinery.
    Hydraulic grapple is widely used for handling, loading and unloading materials, sugarcane, wood, stone, steel slag, grabbing ,garbage, scrap metal and other special operations, As one of the leading Excavator attachment manufacturers in China, Huilian has a full range of grapples suitable for all kinds of brands excavators
