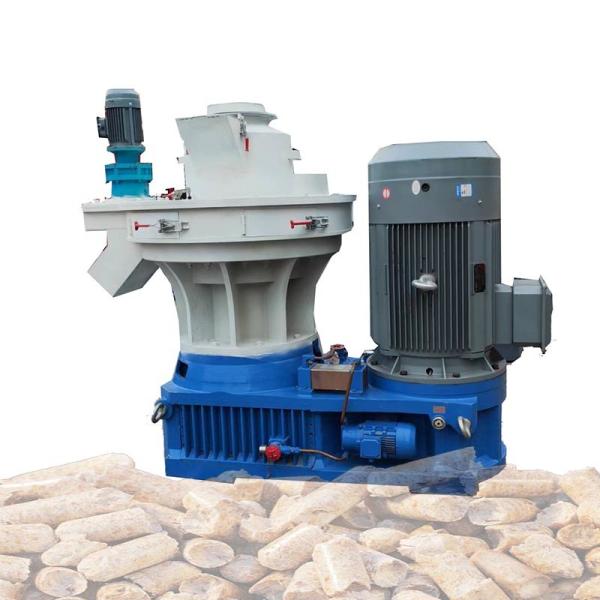

Wood Pellets 15KG Bags Vertical Ring Die Wood Pellet Mill With 1-5
T/H Capacity
Product Description
The new generation of vertical ring die wood pellet machine
effectively solves the shortcomings of difficult granulation and
poor effect on biological crude fiber. The main engine adopts
high-standard heavy-duty reducer for transmission, and the
transmission part of the whole machine uses high-quality bearings
to ensure efficient and stable transmission. , low noise, long
life. The ring die adopts quick-release hoop type, and the feeding
adopts frequency conversion speed regulation feeding to ensure
uniform feeding. The new generation of vertical ring die wood
pellet machine is manufactured by international advanced
manufacturing technology, and the "pressure wheel" is made of
high-alloy wear-resistant materials. It has the characteristics of
unique design, reasonable structure, high energy reduction
efficiency and long service life.
Application Of Wood Pellet Mill:
It is mainly suitable for coarse fiber granulation, such as:
sawdust, rice husk, cotton stalk, cottonseed husk, weeds and other
crop straws, domestic garbage, factory waste, granulation of
materials with low bonding rate and difficult to form, It can be
applied to low-temperature granulation of biological bacterial
fertilizer, organic fertilizer, compound fertilizer, etc. It can
also be used for pressing and granulating various feeds.
Technical Parameters
Ring Die Wood Pellet Mill| Model | Power | Capacity | Contains equipment |
| EWP-450 | 55 KW | 0.8-1 T/H | (1) Feeding conveyor, (2) wood pellet machine, (3) dust removal, (4) automatic lubrication system, (5) electric control cabinet |
| EWP-560 | 90 KW | 1.2-1.5 T/H |
| EWP-600 | 110 KW | 1.8-2 T/H |
| EWP-600A | 132 KW | 2-2.5 T/H |
| EWP-700A | 160 KW | 2.5-3 T/H |
Main Performance Characteristics:
1. Equipped with a heavy-duty reducer to effectively extend the
life of the equipment.
2. Both ends of the finale shaft of this model are consistent with
the linear speed of the inner and outer rings of the die plate, and
there is no dislocation friction between the wheel and the die,
which reduces resistance, reduces kinetic energy loss, and prolongs
the service life of the abrasive tool.
3. The finale is set evenly and runs smoothly.
4. The central pressure regulating structure is adopted to adapt to
different materials and ensure the pressing effect. The compression
molding of sawdust [sawdust], corn stalks, and crop stalks requires
a lot of pressure. The central part of similar granulation
equipment is made of high-quality alloy steel, which improves the
service life of the wheel.
5. The template of this structure is stationary, and the main shaft
drives the pressing wheel to press the material, which is suitable
for pressing difficult-to-press particles.
6. This model is equipped with 3-30mm various hole diameter molds,
which are suitable for granulation of different materials
