    Rigid Strander Cable Stranding Machine Strander

    Ask Lasest Price
    Brand Name : RBTX
    Model Number : RBTX-SZ12I800
    Certification : ISO9001, ISO14001, ISO45001
    Price : Negotiable
    Payment Terms : 100% Advance T/T EXW Dongguan
    Supply Ability : 10 Set/Month
    Delivery Time : 15 Work Days
    • Product Details
    • Company Profile

    Rigid Strander Cable Stranding Machine Strander

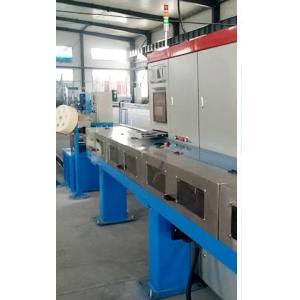

    Rongbang RBTX-SZ12I800 SZ Stranding Production Line

    This SZ stranding line for stranding optical cable cores including fiber loose tube 3.5mm max., fillers and strengthen members to be stranded optical cable.


    Features:

    1. Pay-off is the motorized take-up device, the tension of the pay-off is stable and reliable, and the maximum number of loose tubes can reach 12.

    2. SZ stranding is full differential structure and the stranding pitch is stable.

    3. The tying yarn adopts the double-head single-point two-way cross-twisting method, and the yarn tension is controlled by segmentation, which is stable and reliable.

    4. The production line has sound and light alarms such as tension overrun, release line breakage, and water blocking belt breakage.

    5,International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.

    6. The main control systems and components adopt international famous brands, and the production line has high stability and reliability.


    Technical Parameters

    ParameterValue
    Structure speed100m/min
    Loose tube pay-off number12
    SZ twisting pitch50mm-800mm
    SZ reverse angle±4π-±24π
    SZtwisting maximum speedmax: 1800rpm
    The maximum speed of embossing headsmax: 4000rpm
    Embossing pitch20mm-500mm
    Additional loss≤ 0.02db / km (sm fiber)
    Length of production line≤40m
    Power supply requirements68KVA, AC380V ±10% 50HZ three-phase five-wire
    Power consume40 KW/h.
    Capacity4~6km/h

    Line Configuration

    01. 1250 pay off;

    02. Φ800 tension unit;

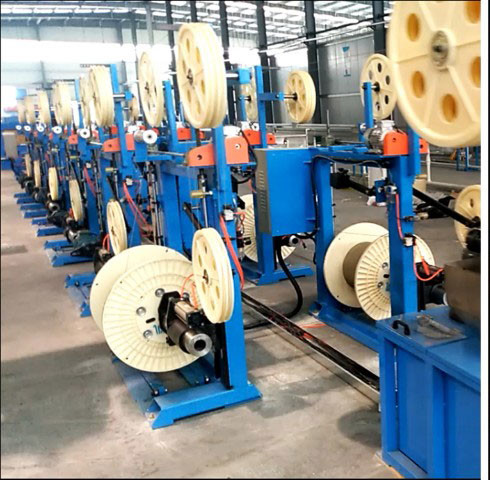

    03. Φ800 loose tube Pay-off ;

    04. Steel wire guiding device;

    05. Jelly filling device;

    06. Cable cores collecting device;

    07. SZ oscillator;

    08. Dual wheel concentric cross-binder;

    09. Water blocking tape pay-off;

    10. Single wheel concentric cross-binder;

    11. 800 Capstan;

    12. 800 tension device;

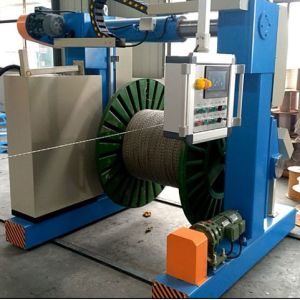

    13. 1400 take up ( ground gantry type option available) ;

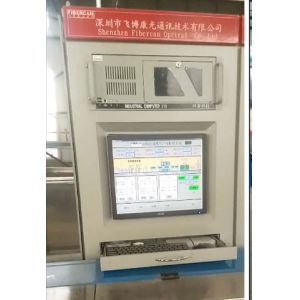

    14. PC+PLC FIBERCAN program electricity control cabinet.


    Above full set configuration is adjustable according different structure cables' production request.
