92% Hexagon Shape Mosaic Tiles
Introduction

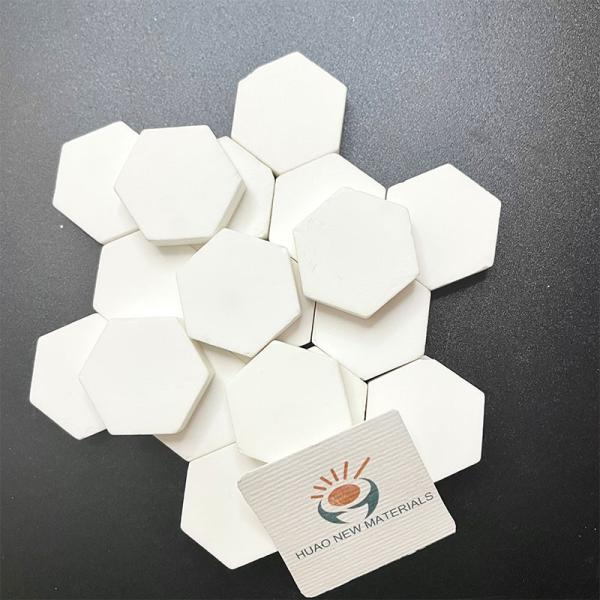

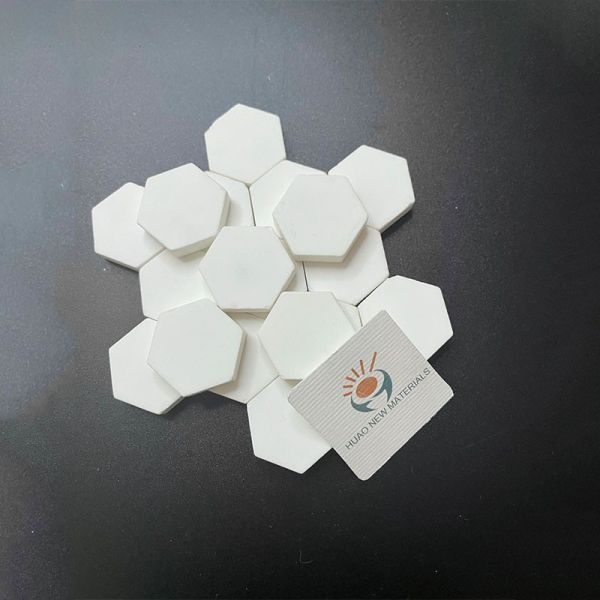

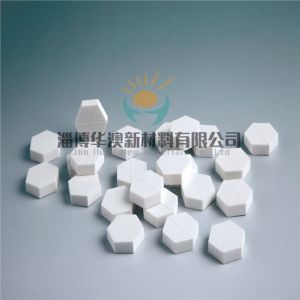

HUAO's Hexagon Shape Mosaic Tiles can be made according to
customers' needs and are an ideal solution for lining high wear
areas such as curved shaped surfaces such as pipes, cones, etc.
This provides protection for applications using standard large
tiles that are impractical.
Advantages
HUAO's Hexagon Shape Mosaic Tiles can be made according to
customers' needs and are an ideal solution for lining high wear
areas such as curved shaped surfaces such as pipes, cones, etc.
This provides protection for applications using standard large
tiles that are impractical.
Hexagon Shape Mosaic Tiles has good anti-wear effect and has the
advantages of high strength, good performance, good impact
resistance and good stability.
Hexagon Shape Mosaic Tiles is formed by oxidizing and condensing at
a high temperature of 1700 ℃ after being pressed by a press. Its
hardness is second only to that of diamond, and has been tested by
the organization. In the case of erosion and wear, the wear
resistance of wear-resistant ceramics is that of ordinary steel.
Dozens of times, even if the temperature reaches 1600 degrees
Celsius, it will not deform, and there is almost no loss of wear
resistance. Replacing other bulky wear-resistant materials with
wear-resistant ceramics can greatly reduce the load on the
equipment.
Instructions
Due to the strong wear resistance of wear-resistant ceramic sheets
during use, the air volume and impact resistance are also large, so
there are strict requirements for the selection of ceramic sheets
and ceramic glue.
The ceramic sheet should use 92-98 alumina content. If you choose a
variety with a lower alumina content, it will not be able to
achieve its performance indicators. Wear-resistant ceramic glue
should also choose a ceramic glue with a relatively high content,
so that the ceramic sheet and the metal steel plate can be firmly
pasted
Product Application
Industry | Equipment system | Equipment parts |
Cerment | Pre-blending system for crashing limestone and crude fuel | Chute, Bunker |
Raw mill system | Feed chute, Bunker |
Cerment mill system | Chute, Bunker |
Steel | Sintered material transport system | Hopper |
Coking system | Coker hopper |
Thermal | Coal Handling system | Coal hopper,Coal feeder |
Port | Transporting material system | Bucket wheel machine’s disk and hopper, transfer point’s hopper,
unloader’s hopper |
Smelting | Transporting material system | Measuring hopper, coke hopper, vibrating screen’s chute,
Intermediate bin |
Batching system | Batch hopper |
Burning system | Ash bucket, hopper |
Chemical | Transporting material system | Hopper, Silo |
Coal | Coal handling system | Bucket wheel machine, coal hopper, coa feeder |
Mining | Transporting material system | Hopper |
Decoration design | Floor decoration | Floor |
Size
Spec | Length(mm) | Width(mm) | Thickness(mm) |
Square shape | 10--24 | 10--24 | 3--20 |
Hexagon shape | 12--20 | 12--20 | 3--15 |
