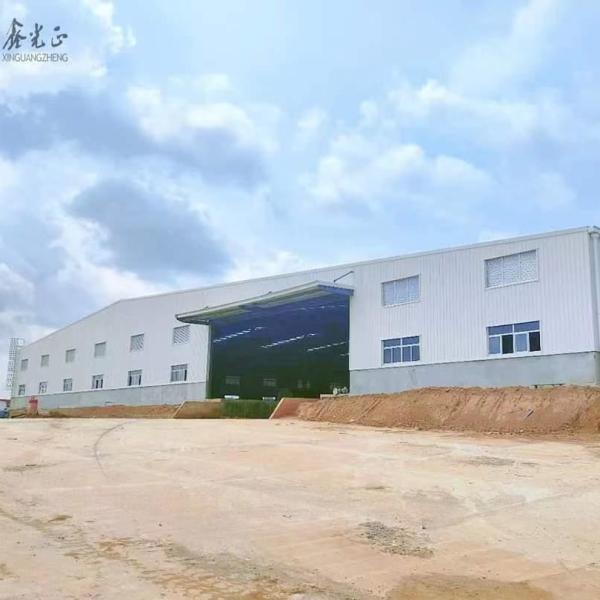

Customized Construction Prefabricated Steel Structure Warehouse
With Fire-Proof Panel
1.Product description
Steel structure warehouse building is a new type of building
structure system. The main steel frame consists of columns and beams. The secondary structure uses C/Z steel, Angle steel, round pipe
processing. An enclosed structure is made up of walls and a roof, plus doors
and Windows. It has the characteristics of large span, high strength, light
weight and flexible layout.
Steel warehouses usually cost less than concrete buildings. The construction process of prefabricated steel structures is
usually less likely to delay other buildings. All drilling, cutting and welding is done at the factory and parts
are then shipped to the construction site for installation. Since only the parts are assembled on site, there is little
additional cost.
And this steel structure prefabricated warehouse assembly
technology requirements are not high. Almost anyone can do it, reducing labor costs and saving time.
The steel warehouse can be assembled quickly. It takes at least a few months to build an ordinary building. To build a warehouse of the same size, the construction period of
steel structure warehouse is only 1/3 of that of other buildings.
2. Product specifiactions
| Main Patrs | Item Parts | Specifications |
| Main Steel Frame | steel beam | Q355B welded H type steel |
| steel column | Q355B welede H type steel |
| Bracing Parts | brace | Q235B,Q345B round steel hot-dip galvanizing |
| roof purlin | C or Z kind steel galvanizing |
| wall purlin | C or Z kind steel galvanizing |
| roof | EPS sandwich panel, fiber-galss sandwich panel, rock wall sandwich
panel |
| wall | EPS sandwich panel, fiber-glass sandwich panel, rock wall sandwich
panel |
| Accessories | bolts | Ordinary bolts, anchor bolts, expansion bolts,baslet bolts |
| gutter | Galvanized steel plate,stainless steel |
| windows | alumium alloy glass window,aluminum alloy shutter window |
| doors | sliding or rolling window |
| downpipe | PVC pipe,PUC pipe |
| edge cover | Color steel sheet,thickness is 0.5mm |
3. Product installation
We can send you install munual and videos to help you build the
prefabricated steel structure. If you need the install guidence, we
will teel our engineer to your country to help you.
4.Company
5.Quotation
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will it be built?) | _____country, area |
| 2 | Size: length*width*height | ____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | ____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | ____kn/m2, _____mm |
| 5 | anti-earthquake | ___level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | ____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | ____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
