SGS Steel Structure Exhibition Hall Customizable Steel Structure Showroom
Product Description
Compared with traditional buildings, steel structure building is a new building structure- the entire building made of steel.
The structure mainly comprises steel beams, columns, trusses, and other parts made of section steel and steel plates.
It is connected between parts and parts by welding, bolts, and rivets.
The lightweight and simple structures are widely used in large factories, stadiums, super high-rise buildings, and other fields.
The type of steel building structure includes the portal rigid steel frame, frame structure, truss structure, and grid structure.
Feature and application of the standard type of steel building structure:
(1) Portal frame structure has simple force, clear force transmission path, and fast construction speed. It is widely used in industrial and civil buildings such as industrial, commercial, cultural, and entertainment public facilities.
(2) Steel building frame structures are flexible and can form a larger space. It is widely used in the multi-story and high-rise building such as commercial office building, shopping mall, conference center and other buildings.
(3) Steel truss structure is using small cross-section tube to form larger cross-section components, which are often used in industrial and civil buildings such as large span roof, bridge, tower, marine oil production platform, etc., with large span or height in the building.
(4) The steel grid structure is a high-order statically indeterminate space structure composed of many rods according to certain rules with small space stress, lightweight, high rigidity, and excellent seismic resistance. It can be used as a gymnasium, exhibition hall, petrol station and hangars, etc.
| Item | Details |
| Product name | Light Prefab Showroom Exhibition Hall Steel Structure Building |
| Application | Warehouse/Workshop/ Hotel/Office/Supermarket/ Exhibition hall/ Showroom |
| Construction Area | Customized |
| Size | Customized based on customer's requirements |
| Main steel frame | Welded H steel with 2 layer of anti rust paint, hot dip galvanized and other paint is also available |
| Roof cladding | Corrugated sheet, EPS/Fiberglass wool/ Rock wool/ PU sandwich panel |
| Wall cladding | Corrugated steel sheet+ Fiber glass wool insulation, Glass Curtain wall + Steel door |
| Door | Roller shutter door, Access door |
| Ventilating | Roof ventilator |
| |
| 1. Primary Framing | H column and beam |
| 2. Secondary Framing | Z and C sections purlin |
| 3. Roof and Wall panels | steel sheet and insulated sandwich panels |
| 4. Steel Decking Floor | Decking board |
| 5.Structural subsystem | Canopies, Fascias, Partitions, etc. |
| 6.Mezzanines, Platforms | H beam |
| 7.Other Building Accessories | Sliding Doors, Roll Up Doors, Windows, Louvers, etc |
Product Parameters
Steel structure
Primary frame element such as steel columns, steel beams and other members are made by hot-galvanized hot-rolled H section steels and welded section steel, which will be bolted together at site. A factory galvanization surface treatment is applied to get better anti-rusting and anticorrosion effect of primary framing elements.
Secondary Framing- Galvanized purlin, tie bar, roof and wall support, are formed as secondary framing.
Bracing- Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building.
Cladding
Roof and Wall are covering of color-coated corrugated steel sheet, hot dipped with zinc and aluminum compound, which is fixed to the outside of structural building to protect it against bad weather or to have a good appearance.
| Main Materials for steel structure building |
| Item | Materials | Remark |
Steel
Frame | H section column and beam | Q345 steel, paint or galvanization |
| wind resistant column | Q345 steel,paint or galvanization |
Secondary bracing | Roof purlin | Q235B C/Z section galvanized steel |
| Wall purlin | Q235B C/Z section galvanized steel |
| Tie bar | Q235,φ89*3 round steel pipe |
| knee brace | angle steel,Q235,L50*4 |
| roof horizontal bracing | φ20,Q235B steel bar, paint or galvanized |
| column vertical bracing | φ20,Q235B steel bar, paint or galvanized |
| casing pipe | φ32*2.0,Q235 steel pipe |
| Pulling bar | Φ10 round bar Q235 |
Roof and wall
protecting system | Wall and roof panel | corrugated steel sheet/sandwich panel |
| gutter | color steel sheet/galvanized steel/stainless steel |
| Trim and flashing | color steel sheet |
| downspout | PVC |
| self tapping screw | |
Fastener system | Anchor bolts | Q235 steel |
| High strength bolt | The Specifications shall be determined according to the design of steel structure. |
| Normal bolt |
| Nuts |
| Window and door | Window | Aluminium windows |
| Door | According to requirement to choose,can be EPS door,windproof door,high-speed roll-up door,industrial sliding door ,glass door,etc. |
We purchase the best quality raw material for fabrication,and provide you with picture information of all production links, from raw materials to steel processing, the whole process of visual production,with strict quality inspection.
There are 6 factory areas for production.All workers have more than 10-year working experience,works will be completed far more efficient,quality and delivery time are available.
Full and advanced equipment:CNC laser cutting machine, vertical machining centers, CNC bending machines, NC drilling machine, CNC Continuous mode of production lines etc
Packaging & Shipping
Here are the packaged products.All steel frame will be packaged by steel pallet,it will protect the surface paint or zinc of the steel structures.
All goods will be loaded in container for shipping.

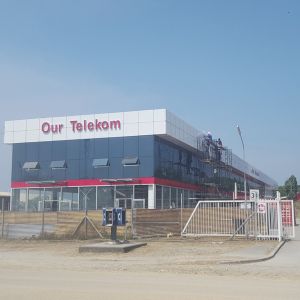

Product Display
