Light prefabricated steel structure building:

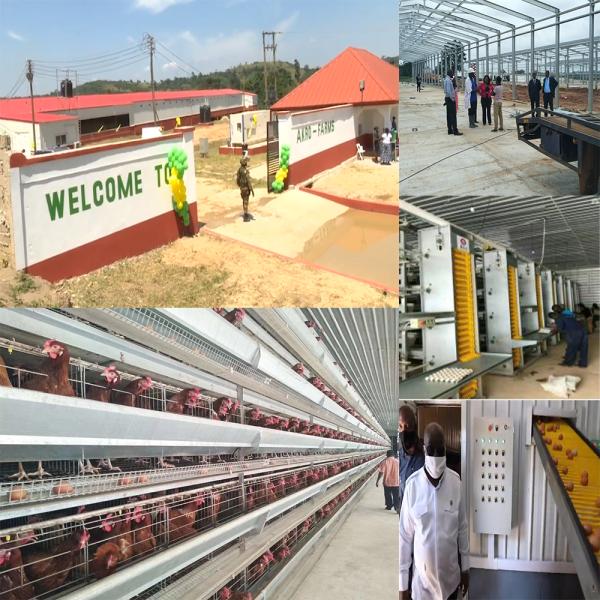

Prefabricated Steel Structure Poultry Farm Livestock Chicken House
| Design Parameter |
| Life Span | 50 years |
| Safety Classes of Structure | Level 2 |
| Seismic Fortification Intensity | 7 Degree |
| Fire Resistance Rating | Level 2 |
| Workshop Building Details |
| Main Steel Structure Part | H section Steel Column, Beam and Mezzanine Beam, which are treated
oxide primier and grey facing painting |
| Secondary Steel Structure | C section steel as Roof and Wall Purlin, galvanized surface |
| Support Part | Included Tie bar, Roof and Wall Support, Bracing, Sleeve Pipe,
Angle Steel |
| Roof Cladding | 0.6mm Steel Sheet+100mm Glasswool Insulation+0.5mm Steel Sheet |
| Wall Cladding | 0.7mm Steel Sheet+100mm Glasswool Insulation+0.5mm Steel Sheet |
| Mezzanine System | Steel Frame+Decking Floor Sheet |
| Window | Aluminium-alloy Window |
| Brick Wall | 1.2m Height |
1) Surface treatment:
Electro galvanize (1.Surface smooth,and bright,, zinc coating:20-30g/m2,2.In the
humid environment,it is easy to rust, But after the rust does not
affect use, service life:8-10 years)Because the cost is low, after
rust does not affect the use, so most people in use.
hot galvanized (1. surface zinc is thick, can reach about 500g/m2,It has the
corrosion resistance of high strength 2. the surface have zinc
knot, not smooth, service life: 25 years--Even for a longer time)
Pvc powder after electric galvanized ( 1.Surface smooth,and bright,Color can choose:Red, yellow, blue,
green, black, white.2.Because this is two layers of surface
treatment, antirust ability enhancement,It is not easy to rust,
service life:20 years)
2)Specialty: Easy to assemble. Feeding and easy management, save
the space, effectively prevent infectious diseases, and increase
the survival rate.
3) Scalability: can be adjusted according to the size, can add
automatic drinking water system, also available for one layer or
layers adjustment.
4) If there are special specifications, also can be customized to
sample.
Main parts of the steel structures and technical parameters:
| Main Steel Frame System |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Edge cover | 0.4mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.8mm color steel plate |
| Rainspout pipes | Φ160 PVC pipe |
Q1. You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us for
inspection. The quality control flow will show you ourprofessional.
Also you will enjoy the best price and competitive price. |
Q2. Is your price competitive with other companies?
A: Our business objectives are to give the best price with same
quality and best quality with the same price. We will do everything
we can to reduce your cost. |
Q3. Do you offer service for installation?
A: We will give detailed installation drawings and video for free.
And if you need, we could send engineers as installation director
even a team. |
Q4. Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the
container loading, but any time during the production time. |
Q5. Do you offer designing service for us?
A:Yes, we could design full solution drawings as your requirements.
They use software such as Auto CAD, PKPM, MTS, 3D3S, etc. we will
be glad to establish sincere business cooperation with you in the
near future |
Q6. What is the delivery time?
A: Delivery time depends on order quantities. Generally, the
delivery time will be 30 days after receiving deposit. |
Q7. How can you get a quotation for your projects?
A: You can chat with me anytime via Trade Manager to offer me your
detail information or you can just fill out our
questionaire(through my email below)and send back to us. We will
give you the best quotation ASAP. Thanks for your kind cooperation. |
Our excellent design team will design the steel structure workshop
warehouse for you. If you give the following information, we will
give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU
sandwich panels will be suggested; If not, the metal steel sheets
will be ok. The cost of the latter will be much lower than that of
the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting
weight____tons; Max. Lifting height _____m
