Gaode Hydraulic Machinery has been a trusted name in the waste
recycling equipment industry for over a decade as a dedicated
Chinese manufacturer of scrap metal recycling equipment, our
flagship products includethe shear baler, scrap baler, scrap shear,
and recycling crane.
In addition to scrap metal processing equipment, we also supply
horizontal baler and vertical baler for compacting plastic, paper,
cardboard, straw, textile and more types of wastes. Our company was
first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and
overseas. As a trusted waste recycling equipment manufacturer, we
have successfully passed the certification of the ISO9001 Quality
Management System. We are currently in the process of obtaining the
approval of European standards such as CE and UL.
Finished Products
The Exhibition
Our Certificate
Our Factory

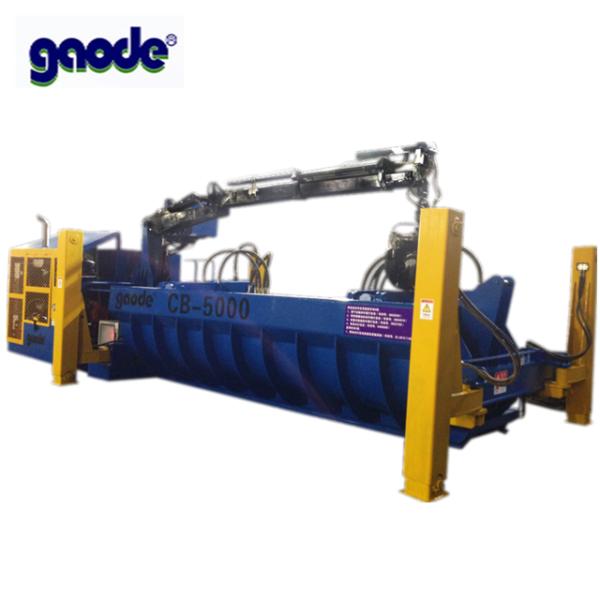

CB-5000 scrap yard metal baling processing
No.
Parameter
Remarks
1
Side press cylinder
(Level 1)
Model
YG200/140-500
Stroke
500mm
Gaode
Max lid force
630KN*3
Quantity
3sets
2
Side press cylinder
(Level 2)
Model
YG200/140-500
Stroke
500mm
gaode
Max thrust
800KN*3
Quantity
3sets
3
Feeding cylinder
Model
YG250/160-2200
Stroke
2200mm
gaode
Max force
1000KN
Quantity
2sets
4
Press box size (L*W*H)
5000*2000*1200mm
5
Bale size (W*H)
800*700mm
6
Hydraulic system working pressure
25MPa
7
Total power
260HP
Cummins
8
High pressure pump
Model
OS4VSO
Nominal pressure
31.5MPa
O’SHENG
Nominal outflow
180ml/r
Quantity
1set
9
High pressure pump
Model
OS4VSO
Nominal pressure
31.5MPa
O’SHENG
Nominal outflow
125ml/r
Quantity
1set
10
Overall dimension
11000*3000*4000 (side wings open)
L*W*H
11000*2300*4000mm (side wings close)
L*W*H
11
Cover area
15000*4000mm
L*W
12
Operating system
Manual
Jiangyin Dehong
13
Cooler
Oil-steam heat exchange
Jinrong Cooler
14
With mechanical hand and operating room
gaode
Our Services
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by
us.
If it is the men-made problems,we also send the spare parts,but you
should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory. Here is our factory address:No.691, Chengshan Road, Jiangyin City,
Jiangsu Province, China.
Jiangsu Gaode Hydraulic Machinery Co.,Ltd as a dedicated Chinese
manufacturer of Scrap Metal Recycling Equipment since 2003. Gaode
is abundant technical force, advanced test equipment and technology
and completed testing machine. With CE and ISO certificates, the
products are widely used in the industry of metallurgy, forge and
scrap yard, waste recovery and so on. We have owned the
self-managerial Import and Export Authority for several years. And
products have been exported to all of the world.
