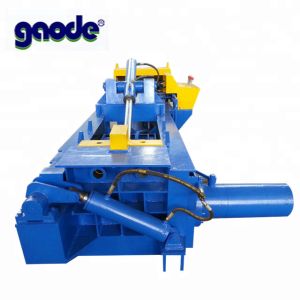

    HC81F-2500 Hydraulic Metal Scrap Semi Automatic Horizontal Baler Heavy Duty Baler

    Ask Lasest Price
    Brand Name : gaode
    Certification : CQC; SGS
    Supply Ability : 1000 Set/Sets per Year horizontal heavy duty baler
    Price : $20,000.00 - $43,333.00/sets
    • Product Details
    • Company Profile

    HC81F-2500 Hydraulic Metal Scrap Semi Automatic Horizontal Baler Heavy Duty Baler

    HC81F-2500 Hydraulic Metal Scrap horizontal heavy duty baler


    Applications


    HC81 series of hydraulic metal balers are applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

    Features:
    1, Hydraulic drive for all machine types, manual valve control or PLC control .
    2, Bale-discharging:" turn-out"," push-out "," forward-out" or manual discharging.
    3, No footing bolts needed in installation ; diesel engine can be equipped for power.
    4, Baling force 10 grades from 63 to 400 tons ; productivity from 4 to 40 tons per shift ( 8 hours ).
    5, Press box size, bale size & bale shape can be customized.


    HC81 Series of Hydraulic Metal Baler Machine --- Technical Specifications


    ModelNominal Force(KN)Press box size L*W*H(MM)Bale size( W*H)(MM)Bale Density(KG/M3)Capacity(KG/H)Cycle Time(S)Power(KW)Bale Discharging/Operation
    HC81/F-6306301000X600X500(180-250) X190X190≥1800500-1000907.5Turn-out, hand valve control
    HC81/F-100010001000X600X500(200-300)X200X200/octagon≥18001000-120012011
    HC81/F-125012501200X700X600 1150X700X600230X230 Or 300X300/octagon (150-400)X250X250≥18001000-150012011Or15
    HC81/T1250A HC81/T1250B12501200X700X600 1150X700X600230X230 Or 300X300/octagon (150-400)X250X250≥18001000-15008018.5Push-out, manual valve control or PLC control
    HC81/Q-135013501100X600X600 1300X600X600(50-300)X600X240≥18001800-250015018.5 Or 22Forward-out,manual valve control
    HC81/F-160016001600X1000 X 800(400-600)X350X350 (400-600)X400X400≥18002000-300015022Turn-out, hand valve control
    HC81/T-1600A16001600X1000 X 800(400-600)X350X350 (400-600)X400X400 /octagon≥18002000-300015022Push-out, manual valve control
    HC81/T-1600B16001600 X1200 X800(400-600)X350X350 (400-600)X400X400≥18002000-300016030
    HC81/F-200020001600X1200X800(400-700)X400X400≥18002500-400016030 Or 37Turn-out, hand valve control
    HC81/T-2000A20001600X1200X800(400-700)X400X400≥18002500-400016030 Or 37Push-out, manual valve control or PLC control
    HC81/T-2000B20001800X1400X900(400-700)X400X400≥18002500-450016030 Or 37
    HC81/T-2500A25002000X1400X900(400-700)X500X500≥18003500-500016044 Or 60Push-out, manual valve control
    HC81/T-2500B25002000X1400X1200(450-800)X600X600≥18003500-500016060
    HC81/F-250025002000X1400X900(400-700)X500X500≥18003500-500016044Turn-out, hand valve control
    HC81/F-315031502000X1400X1200(450-750)X600X600≥18003500-500016060
    HC81/T-3150A31502000X1400X1200(450-700)X600X600≥18003500-500016060Push-out, manual valve control or PLC control
    HC81/T-3150B31502600X1750X1200(450-800)X650X650≥18004000-500016090
    HC81/T-4000A40002600X1750X1200(500-1000)X650X650≥18005000-650016090
    HC81/T-4000B40003000X2000X1200(600-1100)X600X700≥18006000-8500160110
    HC81/T-500050005000X2000X1200(600-1100)X600X700≥18009000-11500180110

    Company Information

    Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.

    In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.

    Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.


    Finished Products

    Our Exhibition

    Our Certification


    Welcome To Our Factory

    Packaging & Shipping

    Our Services

    6months guarantee for whole machine.

    24hours technical support by email.

    Calling or door to door service.

    User manual and detailed video.


    FAQ

    1,Q;Can I add my logo on the machines?

    A: Yes,OEM and ODM are available for us.

    But you should send us the Trademark authorization letter.

    2,Q:How can i get the after-service?

    A: We will send you the spare parts by free if the problems caused by us.

    If it is the men-made problems,we also send the spare parts,but you should pay.

    3,Q:Do you have inspection procedures for machines?

    A:100% self-inspection before packing

    4,Q:Can I have a visit to your factory before the order?

    A:Sure,welcome to visit our factory.
    Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

    5,Q: Can we order one set machine?

    A:Yes, you can.
