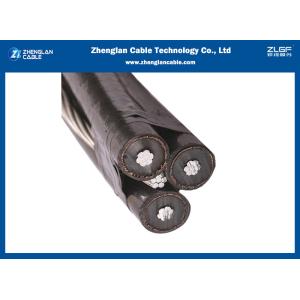

11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm

    Buy cheap 11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm from wholesalers

    Buy cheap 11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm from wholesalers
    • Buy cheap 11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm from wholesalers
    • Buy cheap 11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm from wholesalers

    11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm

    Ask Lasest Price
    Brand Name : Zhenglan Cable
    Model Number : 11kv overhead insulated cable overhead power transmission lines 3x120+1x50sqmm IEC60502-2 overhead service cable
    Certification : ISO 9001:2015,ISO 14001:2005; CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 15,000 KM/Year
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    11kv Overhead Insulated Cable Overhead Power Transmission Lines 3x120+1x50sqmm

    11kv overhead insulated cable overhead power transmission lines 3x120+1x50sqmm IEC60502-2 overhead service cable DESCRIPT ION

    Circular compacted stranded aluminium conductor, ×LPE insulated, copper tape screened and PVC outer sheathed cable.The three ×LPE insulated and copper tape screened single core cables are bundled around the galvanized steel wires in a right hand lay.


    11kv overhead insulated cable overhead power transmission lines 3x120+1x50sqmm IEC60502-2 overhead service cable CONSTRUCT ION

    l Conductor Phase conductors are circular compacted stranded H68 aluminium to Bs2627.
    2 Conductor screen Extruded layer of semi-conductive compound.
    3 Insulation ×LPE (cross-linked polyethylene) rated at 91.C.
    4 Insulation screen
    Non-metallic part: Extruded layer of semi-conductive compound.
    Metallic part: Copper tape screen ( SCT ).
    5 Colour for core identifcation Red, yellow and blue tapes shall be applied between non metallic and metallic part of insulation
    screen.
    6 Separator Polypropylene laminated tape.
    7 outer sheath PVC type sT2 to IEC 61512 colour black.The outer sheath shall be embossed with fgures l, 2, 3 corresponding
    to red, yellow, blue phase.
    8support wire The support wire shall comprise a stranded galvanized steel wires
    9Assembly The three ×LPE insulated and copper wire screened single core cables are bundled around the galvanized steel steel wires in a right hand (Z) lay.



    11kv overhead insulated cable overhead power transmission lines 3x120+1x50sqmm IEC60502-2 overhead service cable Technical data

    Phase conductor

    Nominal cross-sectional areamm2507095120150l85241
    Number of cores3333333
    Minimum number of wires6121515153030
    Nominal diameter of conductormm8.l9.711.512.9l4.316.1l8.4
    Nominal thickness of ×LPE insulationmm3.43.43.43.43.43.43.4
    Metallic screening approx. thickness of copper tapemm0.20.20.20.20.20.20.2
    Nominal thickness of outer sheathmm2.32.32.32.32.32.32.3
    Nominal diameter over sheathingmm23.024.626.327.829.230.933.3
    Max. dc resistance at 20°Cohm.km1.64l1.4430.3200.2530.2061.l640.125
    Earth fault current carrying capacity of metallic screen at
    -1 second ( 1 Core )kA1.571.72l.882.012.l42.302.52
    -3 seconds ( 1 Core )kA0.900.99l.181.161.231.33l.45

    Messenger - Galvanized steel wire

    Nominal cross-sectional areamm250505050505050
    StrandingNo..mm7.3.l57.3.l57.3.l57.3.l57.3.l57.3.l57.3.l5
    Direction of the outermost layerRight-hand ( Z )
    Overall diametermm9.459.459.459.459.459.459.45
    Minimum breaking loadkg6270627062706270627062706270

    Completed cable

    Approx. overall diametermm55596265677175
    Approx. weight of cablekg.km2541289133003660414145415290
    Packing lengthm.drum500500500500500500500

    11kv overhead insulated cable overhead power transmission lines 3x120+1x50sqmm IEC60502-2 overhead service cable image



    About Zhenglan Cable Technology Co., Ltd

    Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.


    FAQ
    Is your company a factory or a trade company?
    Factory, more than 20 years in China
    How long can I expect to get the sample?
    After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
    What are your payment terms?
    We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
    What’s the delivery time?
    Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
    What is your MOQ?
    Generally it is 5000m.
