    Radial Drilling Machine Z3050x16D/1 Hydraulic Vertical Drilling Machines

    Ask Lasest Price
    Brand Name : HD
    Model Number : Z3050x16D/1
    Certification : CE ISO certification
    Payment Terms : T/T,L/C,,Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Radial Drilling Machine Z3050x16D/1 Hydraulic Vertical Drilling Machines


    Product Description:

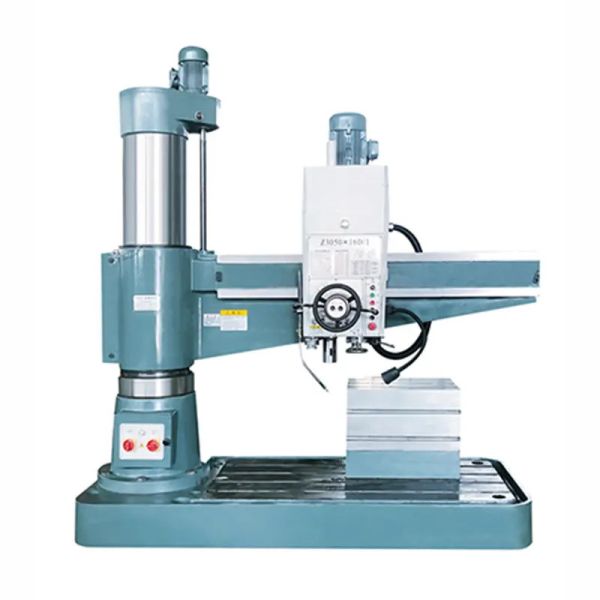

    Z3050×16D/1 Hydraulic radial drilling machine is used for drilling, reaming, reaming, tapping and scraping face and other forms of processing.
    There are two main variations of radial drilling machine: slide type and universal type. The radial drilling machine is mainly
    composed of base, inner column, outer column, rocker arm, spindle box and workbench.

    Product Features:


    1,The use of hydraulic pre-selected speed change mechanism, can save auxiliary time.

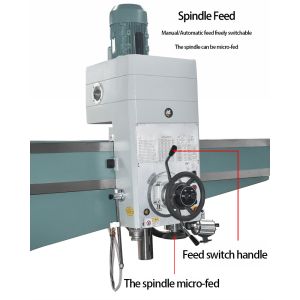

    2,The spindle positive and negative rotation, parking (braking), speed change, neutral and other actions, with a handle control, easy to operate.

    3,Spindle box, rocker arm, inner and outer column with hydraulic drive diamond block clamping mechanism, clamping reliable.

    4,Rocker guide rail, cylindrical surface of outer column, spindle, spindle sleeve and inner and outer column rotating raceway are quenched, which can maintain the stability of machine accuracy for a long time and extend the service life.

    5,There are perfect safety protection devices and external column protection.

    6, In the structural design and in the manufacturing process, a series of effective measures have been taken to make the durability of the accuracy of the machine and the service life of the whole machine are greatly extended.

    Product Details:
    Product Paramenters:
    SPECIFICATIONS
    Unit
    Z3050×16D/1
    Maximum hole diameter
    mm
    50
    Spindle axis to column distance bus
    mm
    350-1600
    Headstock horizontal movement distance
    mm
    1300
    Spindle nose to table distance
    mm
    320-1220
    Column diameter
    mm
    320
    Table size
    mm
    660×500×500
    Rocker lifting speed
    m/s
    4
    Rocker rotation angle
    °
    360°
    Lifting distance of rocker arm
    mm
    580
    Spindle taper
    5#
    Spindle speed range
    r/mm
    20-2000
    Spindle speeds
    16 step
    Spindle Feed range
    mm/r
    0.04-3.2
    Spindle feed rate series
    16 step
    Spindle travel
    mm
    315
    The maximum permissible spindle torque
    N.m
    500
    The maximum permissible spindle feed force
    N
    18000
    Spindle motor power
    Kw
    4
    Rocker lift motor power
    Kw
    1.5
    Machine weight
    Kg
    3500
    Overall dimensions
    mm
    2500×1060×2800

    Industry application:

    OUR Service:


    1. Assemble and debug before delivery


    2. Respond within 24 hours and proceed to deal with the problem.

    3. 1 year free repair service (no-human damage only).

    4. Overall warehousing solution provided
    Why Choose Us:
    ◆ Top quality sense, customers' requests come first

    ◆ 30 years + R & D history, the company was founded in 1993

    ◆ High-tech manufacturer with research anddesign capacity

    ◆ Stable and mature supplying system

    ◆ Young active sales and engineers for instant services(24 hours online)

    ◆ Upgrading on mechanism according to ergonomics and easy maintenance

    ◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
    About Us:
    Welcome to visit us!
    Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
    SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
    Our Factory:
    Exhibition:


    FAQ:


    Q1. Are you a trade company or manufacturing company?

    We are a manufacturing company.
    Q2. What's your main products of your company?
    We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
    Q3. Can you provide customized machine or SPM (Special purpose machine)?
    Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
    Q4: What's your warranty terms?
    We will supply a replacement for parts that prove to be defective for a period of 12 months,
    starting on the machine's bill of lading date.
    Q5. What is the services?
    Pr-sales:Customized solutions, planning and design;One-to-one service
    After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
    Q6: Why choose your company?
    Products from the development, design, manufacture, assembly of the entire production process are
    carried out between plants with a complete production chain which is your most reliable guarantee.
    Q7: Can your company send the technical personnel to our company and direct our workers overseas?
    We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
    Q8: What's the Payment Terms?
    T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
