    ASME SA266 Gr.2N FK Carbon Steel Tubesheet, Channel Cover Flange For Heat Exchanger

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : Gr.1, Gr.2, Gr.3, Gr.4
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : According to Clients' Requirement
    Delivery Time : 5 - 60 Work Days
    • Product Details
    • Company Profile

    ASME SA266 Gr.2N FK Carbon Steel Tubesheet, Channel Cover Flange For Heat Exchanger

    ASME SA266 Gr.2N FK Carbon Steel Tubesheet, Channel Cover Flange For Heat Exchanger


    ASTM A266 / ASME SA266 Gr.1/Gr.2/Gr.3/Gr.4 is a specification of carbon steel forgings, like tubesheets, channel flanges for for pressure vessel components. YUHONG GROUP has supplied these carbon steel tubesheets and flanges for many yesrs with high quality, which are widely used in industries like oil & gas plants, offshore oil drilling, chemical industry, etc..


    The tubesheet is one of the key components in a shell & tube heat exchanger.Depending on the tube bundle configuration, a heat exchanger can be equipped with one or two tubesheets.These tubesheets are usually made of low carbon steel material, with a varying thickness based on the fluid pressure. In view of the final applications (like petrochemical, nuclear, oil & gas, etc.), the tubesheet can be cladded with stainless steel or other super alloys or even be entirely made out stainless steel or superalloys.


    Material Standard:

    ASTM A266 / ASME SA266
    Material GradeGrade 1Grade 2Grade 3Grade 4

    Specification:

    SpecificationASTM A266 / ASME SA266
    GradeGrade 2
    Schedule ChartSCH 5S To XXS.
    Supporting MaterialGasket/ Ring Joint/ Flange Bolts
    Production TechniqueForged/ Heat treated and machined
    Forging MethodsForging & Casting, Rolling & Cutting
    ManufacturerForged/ Threaded/ Screwed / Plate
    Face TypeRTJ/ RF/ FF


    Chemical Composition:

    Carbon (C)0.30 max
    Manganese (Mn)0.40~1.05
    Phosphorus (P)0.025 max
    Sulfur (S)0.025 max
    Silicon (Si)0.15~0.35

    Mechanical Properties:

    Tensile Strength (MPa)485~655
    Yield Strength (MPa)250 min
    Elongation (%)18 min
    Reduction Area (%)33 min

    Applications:

    Gas Processing Plants

    Oil Drilling Plants

    Heat Exchangers & Boilers

    Chemical Equipments

    Petrochemical Plants

    Condensers

    Shipbuilding Equipments

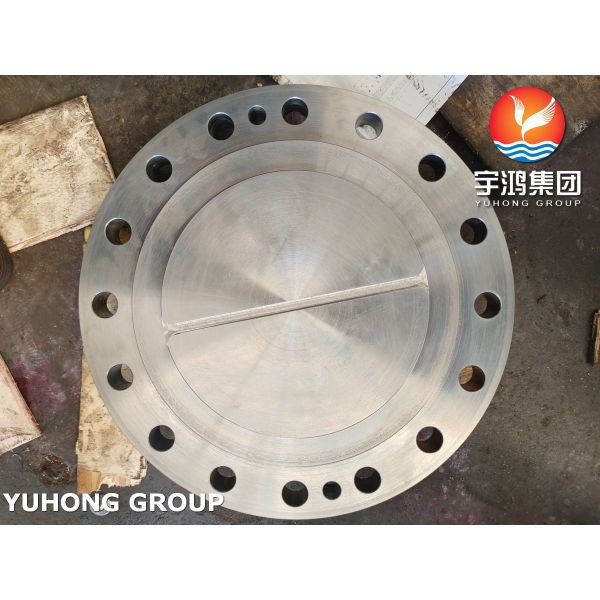

    Quality ASME SA266 Gr.2N FK Carbon Steel Tubesheet, Channel Cover Flange For Heat Exchanger for sale
