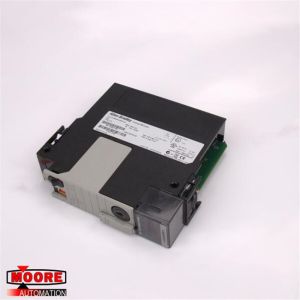

1756-L73 1756L73 AB AB ControlLogix 8 MB Controller
⇒ Click here for good price 1756-L73
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L73 |
| Alternate Part Number | 1756-L73 |
| Description | MOTOR SERVO |
| Dimennsions | 14.5X13.3X3.4cm |
| Weight | 0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-L73 is a ControlLogix 5570 controller. It features 32
tasks and each task holds up to 100 programs. The 1756-L73
controller’s communication options include EtherNet/IP, DeviceNet,
ControlNet, Data Highway Plus, Remote I/O, SynchLink, and
third-party network ports. These ports are for programming,
configuring, firmware updates, and on-line editing. Supported by up
to 500 controller connections, the 1756-L73 controller has full
support for any controller redundancy with integrated motion,
including SERCOS interface and analog options. Its programming
languages are Relay Ladder, Structured Text, Function Block
Diagram, and Sequential Function. The 1756-L73 can use up to 8 MB
of user memory with 0.98 MB of Input/Output memory. In addition, it
has 128,000 total and digital I/O and 4000 analog I/O at most. The
required current draw at 1.2V DC is 5 mA and 800 mA current draw is
required at 5.1V DC. The 1756-L73 has 2.5 W power dissipation and
8.5 BTU/hour thermal dissipation. The isolation voltage is
continuous at 30 V with basic insulation, tested at 500V AC for 60
seconds. Using a USB 2.0, it can reach up to 12 Mbps at its full
speed. Approximately, it only weighs 0.25 kg with a 1-slot width
and an open-style enclosure.
The module is chassis-based at any slot for the 1756 chassis
series. The 1756-L73 controller’s power requirement is a standard
1756 power supply. Its wiring category is 3 – on USB ports. The
1756-L73 controller has an operating temperature of 0-60 °C and its
non-operating temperature is -40-85 °C. The maximum surrounding
temperature that it can operate at is 60°C with 5 – 95%
non-condensing relative humidity. Its operating vibration is 10 –
500 Hz is 2 g and its operating shock is 30 g operating shock while
its non-operating shock is 50 g. It can reach 45 g when an SD card
was installed.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
