1756-L55M13 1756L55M13 AB AB Logix5555 Processor 1.5 MB memory
Series A
⇒ Click here for good price 1756-L55M13
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L55M13 |
| Alternate Part Number | 1756-L55M13 |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x14x14.5cm |
| Weight | 0.35kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

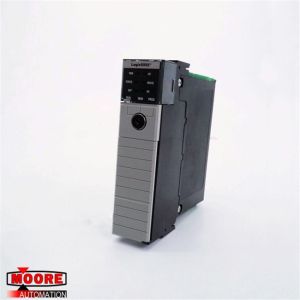

The AB 1756-L55M13 is a Series A ControlLogix 5555 controller.
While this particular controller does not have a nonvolatile memory
available, it does have a 1.5 Mbytes data and logic memory and 208
kbytes I/O memory available. The 1756-L55M13 controller also has a
weight of 0.35 g or 12.5 oz. It does not have an enclosure type
rating since it is an open-style controller.
As part of the ControlLogix system, it is used in conjunction with
the RSLogix 5000 software and located inside a ControlLogix 1756
chassis. It also has the capacity to support the following
communication options: DeviceNet, ControlNet, Ethernet/IP,
Universal Remote I/O serial, Data Highway Plus, Modbus via ladder
routine, SynchLink, and DH-485.
The 1756-L55M13 has backplane currents of 0.014A at 24V DC and 1.23
A at 5.1V DC. Its thermal dissipation is 19.1 BTU/hr, while its
power dissipation is 5.6W. It has a basic insulation type and a
continuous isolation voltage of 30V and has also been tested to
withstand 707V DC for 60s. The conducted RF immunity of the
1756-L55M13 controller is 10V rms with 1 kHz sine-wave 80%AM from
150 kHz to 80 MHz.
