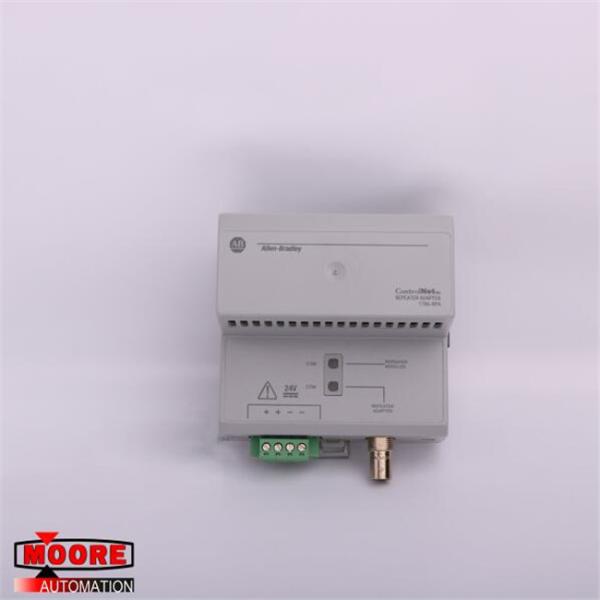

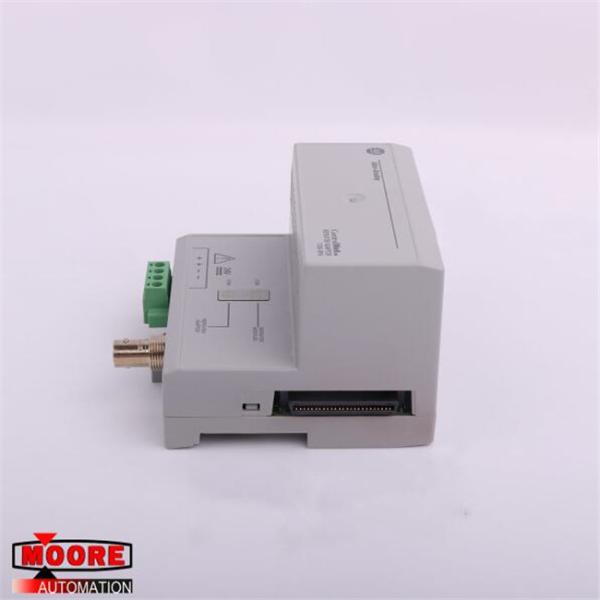

1786-RPA 1786RPA AB AB ControlNet Modular Repeater Adaptor
⇒ Click here for good price 1786-RPA
| Brand/Manufacturer | AB/USA |
| Part Number | 1786-RPA |
| Alternate Part Number | 1786-RPA |
| Description | MOTOR SERVO |
| Dimennsions | 10x9.9x7cm |
| Weight | 0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1786-RPAB is a ControlNet modular repeater adapter. It works
with an RG6 copper coax fiber type and it is capable of connecting
multiple modules. To be specific, the 1786-RPAB repeater adapter
can connect to up to 2 modules when it is used with either the
1786-RPFRXL/B or with the 1786-RPFRL modules and it can connect to
up to 4 modules with the 1786-RPFS, 1786-RPCD, and the 1786-RPFM
repeater modules. The 1786-RPAB repeater adapter requires 24 Volt
DC input power and at 5 Volts DC, it can provide a maximum of 1.6 A
of backplane output current. The AB 1786-RPAB repeater adapter
serves different functions, such as extending the network’s length,
performing network media conversions from coaxial or copper media
to fiber media, as well as the opposite way from fiber media to
coaxial or copper media, providing power to the repeater modules,
and for the creation of a ring, star, or point-to-point topology.
Both the repeater adapters and repeater modules are equipped with 2
status indicators, which indicates if they are both powered up or
if a fault has been detected (these indicators are also known as
ready/fault indicators), and which indicate if errors are present
in the data that is being received at the adapters and modules. The
entire 1786-RPAB repeater adapter has an approximate measurement of
4 x 4 x 3 inches, or 10 x 10 x 8 centimeters, and it weighs around
7 ounces or 0.20 kilograms. This Series B repeater adapter is also
known as model number 1786-RPA/B.
