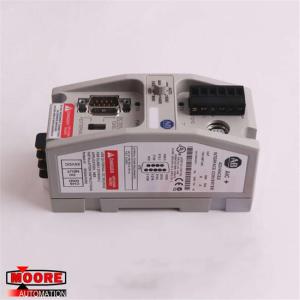

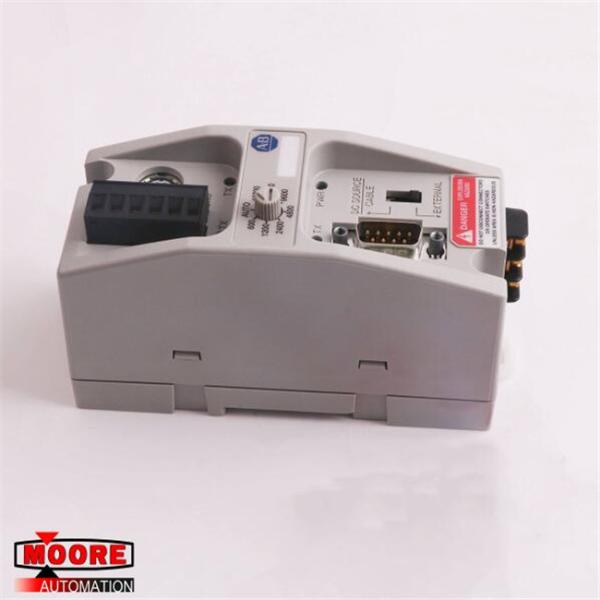

1761-NET-AIC 1761NETAIC AB AB MicroLogix and SLC Communication
Adaptor
⇒ Click here for good price 1761-NET-AIC
| Brand/Manufacturer | AB /USA |
| Part Number | 1761-NET-AIC |
| Alternate Part Number | 1761-NET-AIC |
| Description | MOTOR SERVO |
| Dimennsions | 5x7x12.5cm |
| Weight | 0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1761-NET-AIC is an Allen Bradley MicroLogix 1000 advanced
interface controller. This module is classified under the
MicroLogix 1000 series. It uses DH-485 communication to establish a
communication link with the other network devices. The 1761-NET-AIC
has been specially designed to fit different small logic
controllers. It is also compatible with MicroLogix 1000, 1200, and
1,500 controllers that power the converter. The Advanced Interface
Converter is also specially designed to offer a maximum point to
point and RS-232 to half-duplex user mode ASCII isolator. The
1761-NET-AIC also supports a 24 Volt DC power supply that is
connected to the external power terminal. The converter’s
communication rate filter matches the network communication rate
through the communication-rate selector switch. The 1761-NET-AIC is
designed to provide compatibility with the SLC processors and it
comes with the ability to interconnect SLC 500, 5/01, 5/02, and
5/03 processors.
The 1761-NET-AIC can be used as a point-to-point isolator or an
RS-232 to an RS-485 isolator. The automatic transmitter’s signals
also function to establish communication between the devices. The
1761-NET-AIC is compatible with Logix Controllers, Modems, and PC
serial ports. The 1761-NET-AIC has the CE mark and it is approved
for installation within the European Union; it can be mounted
either vertically or horizontally. Communication to the module is
supported through the use of the hardware handshaking or through
automated transmission signals. The 1761-NET-AIC comes without a
node address pre-associated with the network port, which allows the
node address to be configured in the device that is connected
through the port. The user should note that this module features a
number of operational characteristics. These differ from those of
the electromechanical equipment. Thus, the safety information
should be referenced when installing the device.
