1746-C16 1746C16 AB AB Chassis Interconnect Cable
⇒ Click here for good price 1746-C16
| Brand/Manufacturer | AB /USA |
| Part Number | 1746-C16 |
| Alternate Part Number | 1746-C16 |
| Description | MOTOR SERVO |
| Dimennsions | 123x19x4cm |
| Weight | 0.26kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

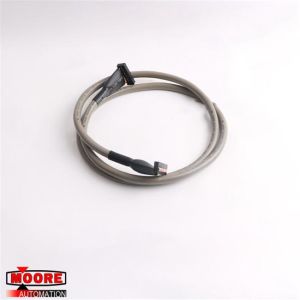

The AB 1746-C16 is a chassis interconnect cable option when
building multiple chassis configurations in SLC 500 Modular
Systems. This ribbon-type cable is used to link one modular
hardware chassis below the other, within an enclosure. It is 1.27
meters (50 inches) in length; the longest among the SLC 500
Programmable Controller Rack Interconnect Cables by AB. Do not use
other cables other than those recommended. Linking with cables
longer than the 1746-C16 can have adverse effects on data
communication integrity, and this can lead to unsafe operation.
When installing multiple chassis configurations, the 1746-C16
Chassis Interconnect Cable should be laid out and linked before
adding the power supply. To avoid effects of vibration and shock,
properly secure the cable. The right end of the chassis must always
be the exit which is connected to the left end of another I/O
chassis. To ensure this, check the length and take note that the
connector is keyed for proper setup. The end with a key on top
should be plugged into the right socket of the chassis. The
opposite end will have a key on the inside and should be inserted
into the expansion chassis.
The 1746-C16 Connector has a rigid construction with an unbendable
shrink wrap applied at its end. This design promotes strain relief.
Allow for proper bend radius with a required clearance of at least
101.6 millimeters (4 inches). To remove the cable, the tabs on the
socket should be moved outward with just enough force for the
connector to pop out.
