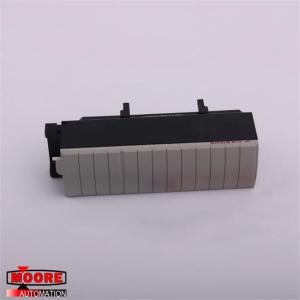

1756-TBSH 1756TBSH AB AB I/O Module
⇒ Click here for good price 1756-TBSH
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-TBSH |
| Alternate Part Number | 1756-TBSH |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x5x11.8cm |
| Weight | 0.·1kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-TBSH provides a flexible linkage between 1756 I/O
modules and plant wiring. It is an I/O module accessory that needs
to be ordered separately from the module. This 20-pin spring-clamp
RTB ships with a standard housing. It is part of the Bulletin 1756
Removable Terminal Block series that are plugged into the front of
ControlLogix I/O modules. It is compatible with selected 1756
Series of AC Digital Inputs, AC Digital Outputs, Analog Inputs,
Analog RTDs and Thermocouples, Analog Outputs, and Specialty I/O
Modules.
The 1756-TBSH Removable Terminal Block comes with a standard
housing and this combination allows a wire capacity of up to 336
sq. mm. It is ideal for 0.33-2.1 mm2 (22-14 AWG) solid or stranded
copper wires rated at 90 °C (194 °F) or greater with a maximum
insulation of 1.2 mm (3/64 inches). The standard-depth housing
measures 147.91mm (5.823 inches) from the module’s front to the
back of the chassis. Wiring multiple conductors on any single
terminal is not advised.
The 1756-TBSH is designed to support RIUP –Removal and Insertion
Under Power. However, extreme caution should be used when working
with live electricity which can be dangerous to the installer as
well as to the system. Possible dangers include injuries, loss of
process control, and unintended machine motion. Removing power
before installation is recommended.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
