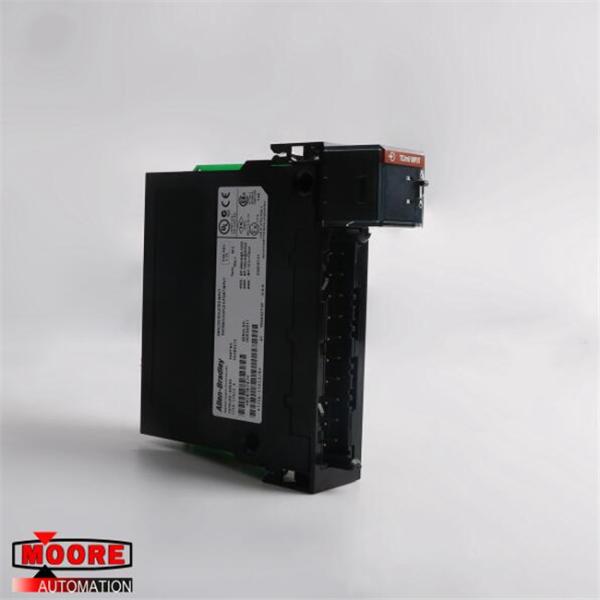

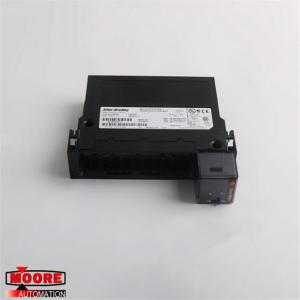

1756-IT6I2 1756IT6I2 AB AB Analog I/O Module
⇒ Click here for good price 1756-IT6I2
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-IT6I2 |
| Alternate Part Number | 1756-IT6I2 |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x14x14.5cm |
| Weight | 0.28kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-IT6I2 is an analog I/O module. This module is an
enhanced thermocouple analog input module. That features Six (6)
individually isolated thermocouple inputs and 2 CJC inputs.
Thermocouple types compatible for this module are B, E, J, K, R, S,
T, N, C, D, and L (TXK/XK). This module is installed to any
ControlLogix chassis. It requires a Removable Terminal Block for
wiring of signal wiring, specifically, only the 1756-TBNH is
compatible for this module. The operating input ranges and
resolutions of the 1756-IT6I2 module are -12 to 78 microvolts (1.4
microvolts per bit) and -12 to 30 mV (0.7microvolts per bit for the
highest resolution range) and 16-bit resolution respectively. It
has an input impedance of more than 10MOhms and a maximum
overvoltage protection of 120 Volts AC/DC. Both the total backplane
power and maximum power dissipation are 4.6Watts. Its thermocouple
linearization is ITS-90 and offset drift is 0.5 microvolts per
Degree Celsius. It also has a settling time of greater than 80
milliseconds to 5% of full scale and a channel bandwidth of 15
Hertz. Thermal dissipation is 15.7 BTU/hour. The 1756-IT6I2 has an
open circuit detection time with a positive full-scale reading of 2
seconds. The integrated noise rejection in normal mode, is 60 dB at
60 Hertz while in common mode, it is a minimum of 160 dB, tested at
600 Volts AC/60 Hertz applied with 100 Ohms differential
resistance. This module allows data format selection such as
integer mode or a floating-point mode. Other features of the
1756-IT6I2 module include cold junction compensation, multiple
input ranges, temperature units, notch filter, sensor type,
real-time sampling, wire off detection, under-range/over-range
detection, 10 ohms offset, a digital filter (only available in
applications using floating point mode), rate alarm, and process
alarms.
